Metal Waist and Back Assisted Exoskeleton for Workers
| US$200.00-900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PHES7
LCD Display
Without LCD Display
Group
Adult
Product Name
Waist-Assisted Exoskeleton
Boost Effect
20kgf
External Power
No
Product Weight
Within 3.5kg
Adjustment Method
Tool Adjustment
Applicable Body Height
1.60m-1.85m
Applicable Body Weight
40kg-85kg
Product Life Cycle
500,000frequency
Wearing Time
Within 1minute
Raw Material
Nylon, Polyfiber, Aluminum Alloy, Stainless Steel
Warranty
1 Year
Package Size
85X25X16cm, 5.3kg
Transport Package
1PC/Carton
Specification
85x25x16cm
Trademark
EXO
Origin
China
HS Code
8486403900
Production Capacity
50000pairs/Year
Product Description
Product Description| Prdoduct | Metal Waist/Back Assisted Work Exoskeleton |
| Model No. | PHES7 |
| Product Features | Suitable for assisting in carrying heavy objects. Through ergonomic design, the weight of the objects being carried is transferred to the metal back support, which is an enhanced elastic waist and can effectively reduce the musculoskeletal load on the lower back. thereby reducing the risk of WMSDs |
| Boost Effect | 20kgf |
| External Power | NO |
| Product Weight | ≤3.5kg |
| Adjustment Method | Tool adjustment |
| Applicable BodyHeight | 1.60m-1.85m |
| Applicable BodyWeight | 40kg - 85kg |
| Product Life Cycle | 500,000 frequency |
| Wearing Time | ≤1Minute |
| Raw Material | Nylon, polyfiber, aluminum alloy, stainless steel |
| Warranty | Service Life-2 years (1 year warranty) |
| Package Size | 85x25x16cm, 5.3kg |

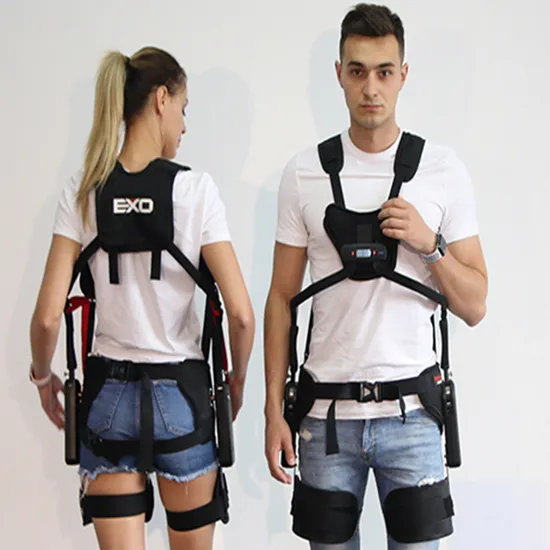

Metal Waist(Back)PHES7-Waist Assisted Exoskeleton
When the laborer needs to stay in the bending position for a long time, the spring maintains the supporting force, which makes the waist muscles more relaxed; when the laborer needs to straighten the waist or lift heavy objects, the stored energy (elastic force) pushes the human body upward, and the human waist Muscles use much less force than usual to get the job done.
Features & Advantages Wide shoulder strap design:to reduce stress on shoulders;
Stainless steel,high strength spring steel engineering plastics,aviation aluminum and other materials ;
Adjustable buckle design:safety,anti-slip,and adjustable;
The packing material is breathable/wateproof/wear-resistant/comfortable;
Leg srip;
Energy storage:can be switched off so as not to affect the normal operation;
Applicable Specifications
Object Weight within30kg
Wearer Weight 40-80kg
Wearer Height 155-185cm
Service Life-2 years(1 year warranty)
Maximum Assistance20kgf
Product Weight 3.5kg
