Rotary Type Vibration Machine for Aged Looking Stone

Product Description

Rotary Type Vibration Machine for Aged Looking Stone
The Vibratory finishing machine is used for marble, granite, limestone, mosaic stone and sandstone processing to antique and aged looking stone. It can be divided into rotary type and linear type.

Rotary type vibration machine
Pieces size: from 1*1cm to 40*40cm.

Main Structure and Working priciple

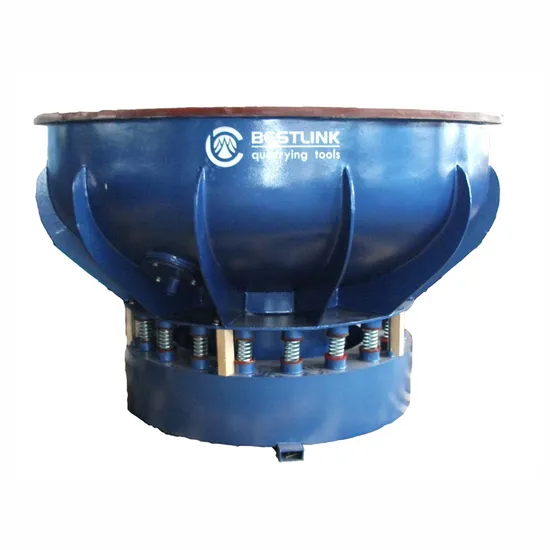

This Rotary type vibration machine consists of a vibratory motor, the vessel with a separation sieve, pedestal springs and basement. The vibratory motor is connected with the vessel by means of bolts and then together they are installed on the springs linked to the basement.
It is a kind of vibratory grinding process in which the parts to be processed are put in the vessel where there are polishing abrasive pieces and grinding compound mixed by certain ratio. The regular vibration of the vessel causes a relative grinding movement between the abrasive pieces and the parts, thus removing the burrs from the parts, and at the same time rounding the sharp edges and polishing the surfaces of the parts.

Application:
The Antiqued surface ageing machine is mainly used for processing parts made of stone, metals, non-ferrous metals and nonmetals, including removing burrs and rust, rounding and polish-processing, especially suitable for polish-processing of parts with complicated and irregular cavities. After processing, not only there is no damage to the original shape or precision of dimensions of the processed parts, but also the precision of the roughness of the processed parts can be raised 1 to 2 grades.
This surface ageing machine is suitable for the surface polishing of large quantity and batch of medium and large-sized parts.

Features:
1. Adoption of vibratory locus theory of 3-Dimensional curve, it makes workparts and medias interactively mass finished.
2. Applicable to process small and medium size workparts in large amount in large amount load, and working efficiency is improved to 6-10 times.
3. No damage to the original shape and size of the workparts.
4. Random checking the workparts in the finishing process.

Specification:

Model	BV-R600	BV-R800	BV-R1200	BV-R1500
Motor power	5.5kw	7.5kw	11kw	11kw
R.P.M	1400	1400	1400	1500
Net volume	600L	800L	1200L	1500L
Dimension L*W*H	1800*1800*1220	1850*1850 *1350(mm)	2120*2120 *1500(mm)	2120*2120 *1550(mm)
Weight	1400kg	1800kg	2040kg	2100kg
Max processing size	30*30cm	30*30cm	40*40cm	40*40cm
