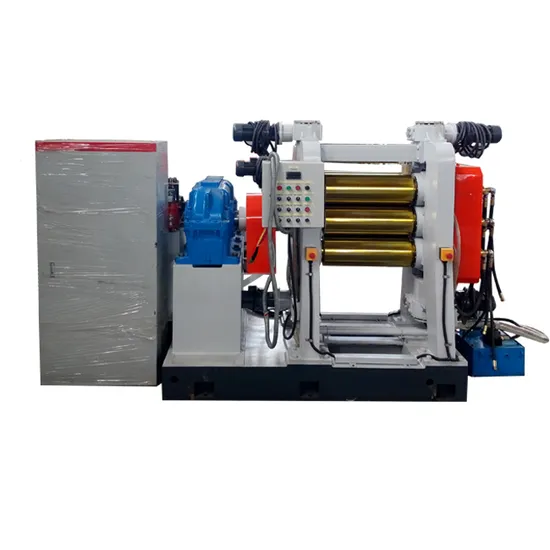

Rubber Calender Machine / Rubber Calender Line / PVC, Conveyor Belt Calendering Line

Product Description

4 roll cooling device rubber calender simple friction production line Applications: Rubber Calender Macine is used for calendering rubber or plastics,fabric fractioning and coating,sheet and composite of rubber or plastics. Main technical parameters:

Model Item			XY-3I 630 XY-3L 630 XY-3630	XY-3I 1120A XY-3 1120A XY-3L 1120A	XY-3I 1400	XY-3I 1500	XY-3I 1730	XY-3I 2130	XY-3I 2430
Roll dia		mm	230	360	400	450	610	710	810
Roll working length		mm	630	1120	1400	1500	1730	2130	2430
Roll ratio		mm	1:1:1 1:1.42:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	1:1:1	1:1:1 1:1.5:1
Middle-roll linear speed		m/min	0.8-8	3-21.06	3-26.39	2.62-26.2	5.4-54	8-50	2-20
Adjusting nip range		mm	0-7	0-10	0-10	0-6	0-20	0-20	0.5-25
Min.Calendering product thickness		mm	0.2	0.2	0.2	0.2	0.15	0.15	0.5
Calendering product width		mm	100-500	500-920	1200	1400	1500	1900	2150
Motor power		kW	7.5	45	55	75	132	185	220
Overall dimensions	L	mm	3168	5550	6500	7420	7010	7650	9300
	H	mm	890	1640	1500	2200	3950	4560	3150
	W	mm	1830	2120	2440	2900	3730	4080	5200
About weight		t	~2.6	~16	~18	~19	~52	~67	~94

We can also design and produce according to customer's requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time
Notice:According to the different models have different price, please send your need to type and quantity of the product.

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine,
refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
