Car Mixer Concrete Batching Plant Ready Mix Concrete Plant
Product Description

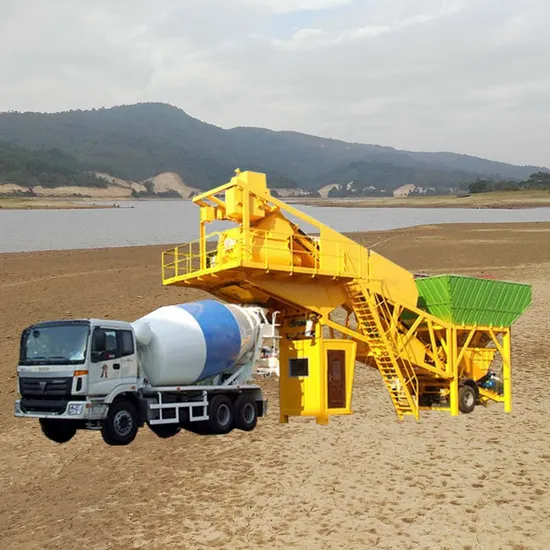

Car mixer concrete batching plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and fully automatic control system of the car mixer concrete batching plant into a trailer unit. It is exactly the same as the stationary concrete batch plant in all its action processes, operation methods and maintenance. At the same time, car mixer concrete batching plant has unique characteristics such as flexible movement, quick and easy disassembly and assembly, and simple storage and management.
At present, car mixer concrete batching plant are mainly divided into two types: tractor type and trailer type. The tractor type chassis contains complete front and rear axles. The trailer type chassis only has the rear axle, and the front end is placed on the tractor saddle bridge.
Component
Car Mixer Concrete Batching Plant
Configuration

Product Name	Car Mixer Concrete Batching Plant
Model	YHZS35	YHZS50	YHZS75	YHZS100
Theoretical Productivity(m3/h)	35	50	75	100
Mixer	JS1250/750	JS1500/1000	JS2250/1500	JS3000/2000
Batching System	PLD1200	PLD1600	PLD2400	PLD3200
Discharge Height	3.8m	3.8m	3.8m	3.8m

Product Name	Simple Car Mixer Concrete Batching Plant
Model	JYHZS25	JYHZS35	JYHZS50
Configuration	PL800-1, JS500 Pneumatic discharge Cumulative measurement for cement and fly ash Time control for water Simple control system	PL1200-2, JS750 Pneumatic discharge Cumulative measurement for cement and fly ash Time control for water Simple control system	PL1600-3, JS1000 3.8m discharge height Manual discharge Cumulative measurement for cement and fly ash Time control for water

Application
All production processes, operating, and maintenance of the car mixer concrete batching plant and the stationary concrete batch plant are exactly the same. At the same time, car mixer concrete batching plant has the unique advantages of flexible movement, quick and easy disassembly and assembly, simple storage and management, etc. Therefore, the car mixer concrete batching plant is suitable for construction projects that need to be moved such as highways, railways, bridges, ports, water and electricity projects, etc.
Packaging & Shipping
The car mixer concrete batching plant has an overall modular design, simple and compact structure, suitable for container transportation.
Company Profile & Workshop
Tai'an Chenli Construction Machinery Co., Ltd. is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. Based on a deep understanding of building intelligent equipment, Taian Chenli is committed to providing users with "practical, efficient, low-carbon, environmentally friendly, intelligent and advanced" intelligent equipment products. In line with the product concept of "excellence in quality, simplicity to the extreme", committed to the high-tech development and application of intelligent equipment, energy-saving and environmentally friendly equipment for new building materials. The current leading products are cement small concrete batching plant , mortar production lines, tower type sand making machine, and environmental protection equipment for batching plants. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users.
