US$199.00-499.00
|
1 Set
(MOQ)
|
Basic Info.
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Connection Method
Direct Connection
Master Clutch Type
Wet Friction
Matched Power
Sr1p65f/P (5.0HP)
Working Speed
3.9-5.6km/H
Transport Package
Wooden Box
Specification
120X55X87cm
Production Capacity
1000sets/Week
Packaging & Delivery
Package Size
150.00cm * 70.00cm * 100.00cm
Package Gross Weight
67.000kg
Product Description
Product Description

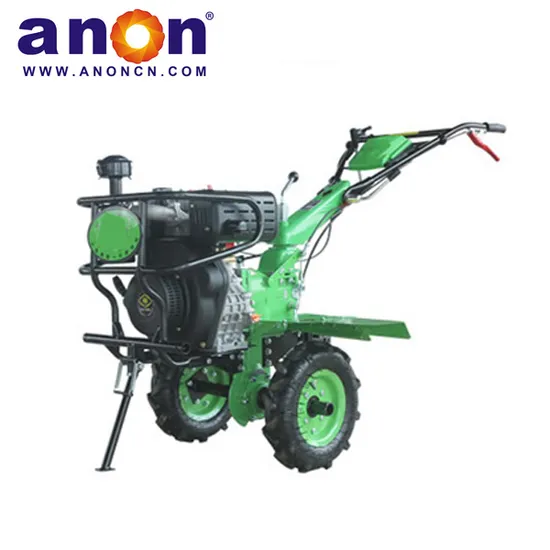

Anon China New Power Engine Mini Garden Tractor Tiller
The 1WG6.3-135FC-ZC/8 Mill tiller is designed for fast and slow forward gears and one reverse gear. The high-strength reinforced armrests increase the strength of the operating system. The normally open clutch mode complies with the national safety mandatory standards. The high-powered engine makes the machine work with high efficiency and stable quality, and is suitable for dry land and paddy fields in hilly and mountainous areas.
Product Parameters
Model | 1WG2.3-55FQ-ZC | 1WG4.2-80FQ-QL | 1WG4.05-85FQ-ZC | 1WG4.2-70-FQ-ZC |
Connection method | direct connection | belt | direct connection | direct connection |
Productivity | >0.02 | >0.04 | >0.04 | >0.04 |
Dimension | 1200X550X870mm | 1570X830X800mm | 1465X850X828mm | 1500X700X1000mm |
Master Clutch type | Wet friction | Tension wheel | | Taper dry friction |
Matched power | SR1P65F/p(5.0hp) | SR170F/R(7.0hp) |
Working width | 55cm | 80cm | 85cm | 70cm |
Working speed | 3.9-5.6km/h | 6.9-9.4km/h | 0.1-0.3m/s | 4-12km/h |
Rotary cutter model | dryland knife | dryland knife | | |
Working depth | >10cm | >10cm | >10cm | >10cm |
Weight | 46kgs | 75kgs | 60kgs | 67kgs |
Bore DiaXStroke | 65X48 | 70X54 | | 70X54 |
Engine type | single cylinder four stroke |
Max Power | 3.0/3600 | 4.2/3600 | | 4.2/3600 |
Startup mode | hand start | Hand pullback start |
Detailed Photos
Anon China New Power Engine Mini Garden Tractor Tiller
Anon China New Power Engine Mini Garden Tractor Tiller Company Profile
