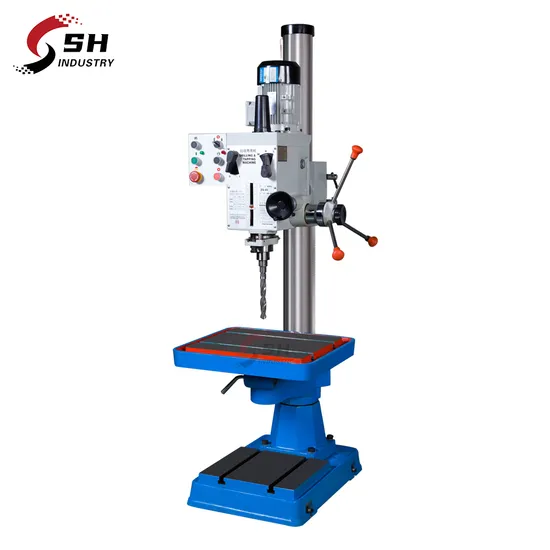

Zs-40PS Zs-40HS Gear Head Metal Vertical Drilling and Tapping Machine

Product Description

ZS-40PS ZS-40HS Gear Head Metal Vertical Drilling and Tapping Machine
Product Description
Product description:
The machine adopt gear driving and the driving movement is strong
The machine has the six series speed variable feature ,which can be widely fit for processing to kinds of common hard and soft material
The head can rotated 360 degree and can tilted +/-45 degree it reliable and easy job can be done
The motor drive by gear ,which overcome the short coming of the belt skid
According to the customer demand the machine can drill ,enlarge,ream and tap the multi-holes by the multi-spindles .
Standard accessories :
Drill chuck Ø16mm
Cutter Ø80mm
Taper sleeve
Arbor
Drift
Wrench
Drawbar
Special accessories:
Milling chuck
Angle vice
Safety guard
Stand
Main technical specifications:

Model	ZS-40HS/ZS-40PS(with coolant system)
Max. Drilling capacity(mm)	Cast iron 40 steel32
Max.tapping capacity(mm)	Cast iron M32 steel M24
Diameter of column(mm)	115
Spindle travel(mm)	120
Distance spindle axis to generating line (mm)	272.5
Max. Distance spindle nose to table(mm)	745
Max. Distance spindle nose to base(mm)	1200
Spindle taper(mm)	MT4
Spindle speeds range(r/min)	95/170/280/540/960/1600
Spindle speeds series(r/min)	6
Dimension of worktable surface(mm)	540x470
Table travel(mm)	515
Dimension of base(mm)	635x460
Overall height(mm)	1760
Motor(W)	Single phase 750 Three phase 1100
G.W/N.W(kg)	350/310
Packing size(cm)	72x74x186/72x74x191

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
