Heavy Machinery 150-Ton Excavator with Strong Carrying Capacity
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
FR 1500F
Usage
Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Max. Bucket Digging Force
667kN
Power/Speed
680kw/1800rpm
Machine Weight
145000kg
Max. Unloading Height
8289mm
Max. Digging Height
13311mm
Max. Digging Depth
7838mm
Max. Digging Radius
14058mm
Transport Package
Naked
Specification
15600*5690*6215 mm
Trademark
LW
Origin
China
HS Code
8429521200
Product Description
Heavy Machinery 150-ton Excavator with Strong Carrying Capacity Product DescriptionFR1500F is a mining excavator custom-developed for large open-pit mines by L O V O L Heavy Industry. It is also the largest tonnage excavator currently produced by L O V O L Heavy Industry. It completely surpasses competing products of the same tonnage, and ensures the quality and performance, users feel more assured.
Features:
Equipped with the Wei chai 8M33 engine and integrated with L o v o l's fully electronic intelligent control system, it offers precise control, high efficiency with low consumption, and proven reliability and durability.
The working mechanism has been completely upgraded with an operating life exceeding 15,000 hours. The bucket shape has been optimized and upgraded, resulting in a 25% increase in wear resistance.
The chassis adopts a modular mining-specific design, featuring a 150-ton class four-wheel and crawler assembly; The optimized box-type main beam and counterweight mounting structure significantly enhance its carrying capacity.
Comprehensive one-stop service for the hydraulic powertrain, with an extended warranty for core components, ensures safer and more secure use.
Product Parameters
| Description | Unit | Parameter |
| Operating Weight | kg | 145000 |
| Bucket Capacity | m³ | 8.0-12.0 |
| Rated Power | kW/rpm | 680/1800 |
| Max. Bucket Digging Force | kN | 667 |
| Max. digging height | mm | 13311 |
| Max. unloading height | mm | 8289 |
| Max. digging depth | mm | 7838 |
| Max. digging radius | mm | 14058 |
| Overall Dimension (L*W*H) | mm | 15600*5690*6215 |

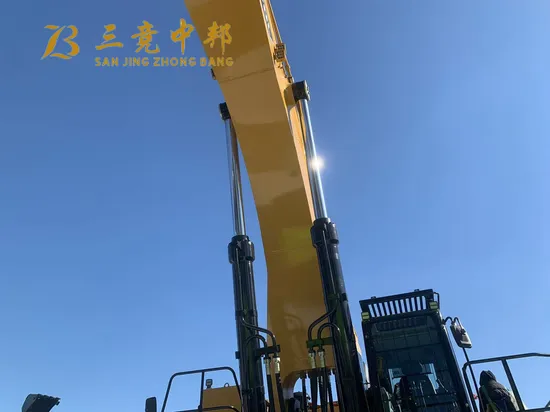

Detailed Photos
