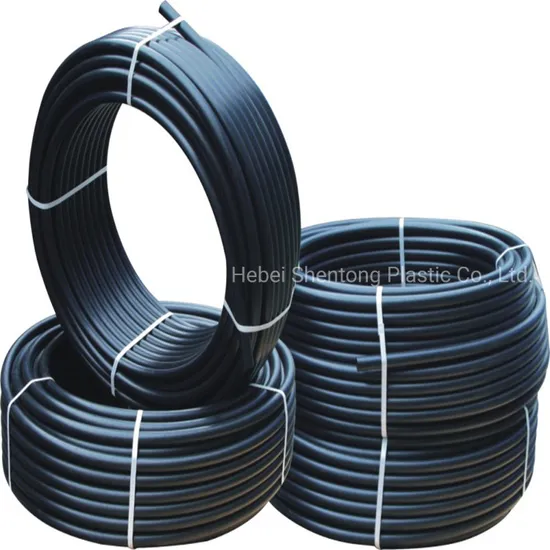

20-630mm PE100 Water Supply HDPE Pipe

Product Description

Product Description
1. Light weight: the weight per unit length is only 1/6 of the cast iron pipe;
2. High strength:the tensile strength can reach more than 45Mpa;
3. Small resistance: the inner wall of the pipe is smooth and does not scale, and the head loss along the process of the pipe of the same diameter is more than 30% lower than that of the cast iron pipe, which can save a lot of operating power costs;
4. Corrosion resistance: good acid resistance, alkali resistance, chemical corrosion resistance, good electrical corrosion resistance, and no pitting phenomenon in use;
5. Easy installation: flexible connection, rubber ring sealing, easy installation and good sealing;
6. Long service life: under normal working conditions, the service life can reach 50 years;
7. Non-toxic and hygienic: in line with drinking water standards, the water transported is not subject to secondary pollution;
8. Low cost: low transportation and installation costs, low material costs, and the total project cost is 30% lower than that of cast iron pipes.
Product Parameters

Color	Black,White, or Customized
Size	20-1600 mm
Usage	Water Supply
Discount	supply
Serviceable Life	Over 50 years
Certification	ISO9001 CE
Delivery Port	Tianjin
Sample Time	7 days
Healthy	Environmental Friendly

HDPE Pipe Specification
PE100	0.4MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
PE80	0.32MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa
Outside Diameter	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness (en)
20	-	2.0	2.0	2.0	2.0	2.3	2.3	3.0
25	-	2.0	2.0	2.3	2.3	2.3	2.8	3.5
32	-	2.0	2.3	2.3	2.4	3.0	3.6	4.4
40	-	2.3	2.3	2.4	3.0	3.7	4.5	5.5
50	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	2.3	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	2.3	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	2.3	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	2.7	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	3.1	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	3.5	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	4.0	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	4.4	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	4.9	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	5.5	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	6.2	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	6.9	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	24.1	30	37.4	46.3	57.2	70.3	-
710	17.4	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	61.2	76.2	94.1	117.6	-	-	-

Certifications
Hebei Shentong Plastic Industry Co., Ltd. is a professional manufacturer of plastic accessories (PPR/PVC accessories), such as plastic ball valves, plastic tee, molds, etc.
If we're lucky enough to work with you, we'll provide you with high-quality products at the best prices with safe, efficient shipping.
Feel free to contact us anytime if you have any needs.
We sincerely invite domestic and foreign customers to come to consult and cooperate.
Sincerely,
Shentong Group Detailed Photos

Our Advantages
1.High density polyethylene(HDPE) pipes2.Light weight3.Does not corrode4.Resistant to chemical fertilizers and herbicides5.Non toxic and odorless6.Resistant to harsh climate7.Up to 50 years' durability8.Resistant to deformation9.Smooth interior structure, low friction losses10.Low labor coat for handling and installing11.Reliable performance and easy maintenance
Packaging & Shipping

Company Profile
HEBEI Shentong Plastic Industry Co., Ltd. Was established in 2003, which is an enterprise concentrating manufacturing PLASITC pipes and fittings. The leading products are Fosite Brand PP-R PIPE AND FITTING, HDPE PIPE AND FITING, UPVC pipe and fittings, PE-RT, PEX pipes & fittings and plastic tubing welding equipment. It has advanced automatic machines. We pursue the quality is the first and the service is also important. Shentong has passed ISO9001, ISO4001. We have our own test lab for quality control. Our brand Forsite is famous in home and overseas market. SHENTONG promises: Reasonable price, fast delivery and satisfactory service. Hope to cooperate with more customers for mutual development and benefits, warmly welcome potential buyers to contact us.

FAQ
Q1. What material of pipe are you specialized in?
A: We manufacture PE, HDPE, PPR, PCV, PB, PE-RT, PEX Aluminum composite pipes and fittings. Q2. Please tell me your largest outer diameter for pipes.A: We can produce 1600mm diameter (PE pipe) as the largest size. Q3. The price of your products is higher than others.A: We can't promise you the best price, but we can promise you the best quality. We import raw material from famous companies such as Borstar, LG Chemical, Chervrom, Hyosung, Lydellbasell, Sinopec. Q4. For pipe fittings, what do you do mainly?A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap and copper insert fittings are our main products.
Q5. Do you provide samples? How much does that cost?
A: Of course we do. We can provide a few samples for free. However, the shipping cost of the goods needs to be borne by you.
