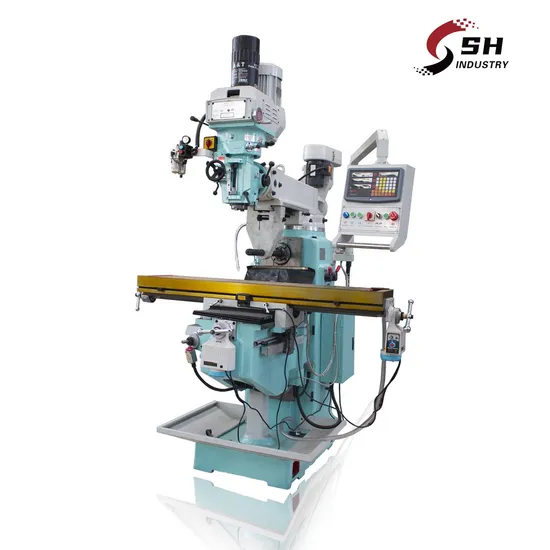

X6330W High Quality Knee Type Universal Metal Turret Milling Machine Price

X6330W High Quality Knee Type Universal Metal Turret Milling Machine Price

US$3,200.00-4,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6330W
Type
Worktable Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size(mm)
1370X305
Long Travel(mm)
900
Cross Travel(mm)
400
Vertical Travel(mm)
420
T-Slot No. and Size
3X16
RAM Travel(mm)
500
Distance From Spindle Nose to Table Surf
0-500
Spindle Hole Taper
Standard:R8
Spindle Travel(mm)
127
Auto Quill Feed
Three Steps: 0.04/0.08/0.15 mm/Revolution
Telescopic Stroke
470
Spindle Power
V 2.2kw/3HP/(Optional 5HP)
Head Swivel
90°
Head Tilting
45°
G.W./N.W. (Kg)
1200/1550
Transport Package
Plywood Case
Specification
1680x1790x2235(include 2 sets)
Trademark
shenghuan
Origin
China
HS Code
8459590000
Production Capacity
2000

Packaging & Delivery

Package Size
168.00cm * 179.00cm * 223.00cm
Package Gross Weight
1550.000kg

Product Description

Product Description
Metal Universal 5hw Horizontal and Vertical Turret Milling Machine(X6330W)
We are the most professional in making turret milling machine
Product Parameters
Main use:
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
Feature:
1 .Taiwan original milling head, NSK P4 spindle bearing.
2.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
3.Work Table Made by HT200-250 High Strength Cast Iron
4. With the horizontal milling function
5.Plastic Guide Way Increase The Precision And Service Life
6.Three Axis can Fix (X/Y/Z) Automatically Feed .
7 .Taiwan original milling head, NSK P4 spindle bearing.
8. Dovetail Type , Rectangle Type ,Horizontal Type .Can Choose
Main technical specifications Model Units X6325W X6330W
Table size(mm) mm 1270X254 1370X305
Long travel(mm) mm 780 900
Cross travel(mm) mm 400 400
Vertical travel(mm) mm 370 420
T-slot No. and size 3x16 3x16
Ram travel(mm) mm 500 500
Distance from spindle nose to table surface(mm) mm 0-500 0-500
Spindle hole taper mm Standard:R8 Standard:R8
Optional: ISO30/ISO40 Optional: ISO30/ISO40
Spindle travel(mm) mm 127 127
Spindle speed Standard:16steps Shift grade: Standard:16steps Shift grade:
50HZ:65-4500 50HZ:65-4500
60HZ:80-5440 60HZ:80-5440
horizontal 45-1350(12 step less) horizontal 45-1350(12 step less)
Optional : stepless Optional : stepless
Variable: 65-4500 Variable: 65-4500
Auto quill feed kg Three steps: 0.04/0.08/0.15 mm/revolution Three steps: 0.04/0.08/0.15 mm/revolution
Telescopic stroke mm 470 470
Spindle power KW V 2.2KW/3HP/ (Optional 5HP) V 2.2KW/3HP/ (Optional 5HP)
H 2.2KW / 3HP H 2.2KW / 3HP
Head swivel ° 90 90
Head tilting ° 45 45
Dimension of package mm 1516x1550x2235 1516x1550x2235
1680x1790x2235(include 2 sets) 1680x1790x2235(include 2 sets)
1650x2285x2235(include 3sets) 1650x2285x2235(include 3sets)
G.W./N.W. (kg) Kg 1100/1450 1200/1550

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
