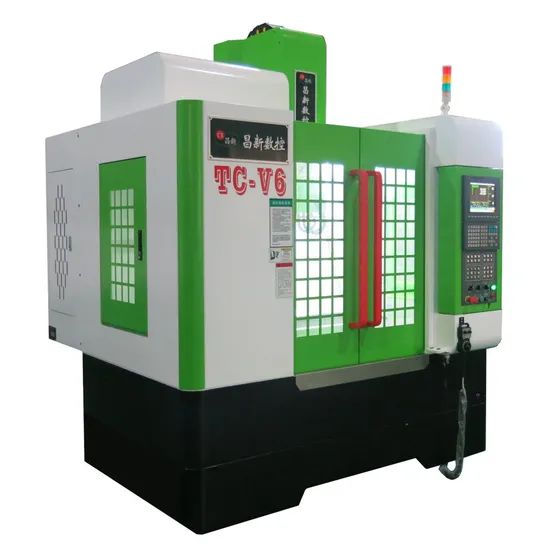

5 Axis Small Size CNC Milling Machine Center Vmc 650
| US$51,094.89-52,554.74 | 1 set (MOQ) |
Basic Info.
Model NO.
TC-V6
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Packing
Specification
2600*2240*2350mm
Trademark
Chansin
Origin
China
HS Code
8457101000
Production Capacity
1000sets/Year
Product Description
5 axis small size cnc milling machine center vmc 650Specification:
| 5 axis cnc machine center TC-V6 | |
| System: | Taiwan Syntec 200MA-5 |
| Motor: | Servo motor:Japan Yaskawa |
| Auto Lubrication System: | auto evenly distributing lubrication |
| Tool Magazine: | Taiwan ATC Arm type tool magazine (24 tools) |
| Bearing: | Japan NSK or German FAG optional |
| X/Y/Z-Axis Travel | 600mm/450mm/450mm |
| Distance from Spindle Nose to Table | 120mm-600mm |
| Distance from Spindle Center to Column Guide Rail | 550mm |
| Working Table Size | 700*420mm |
| Table Max Load | 500kg |
| T Slot | 4pcs,size:18T,Interval:100mm |
| Main Spindle | Taiwan Royal |
| Spindle Speed | standard:12000rpm |
| Spindle Motor Power | 7.5kw |
| X/Y/Z-Axis Motor Power | 2.0kw/2.0kw/3.0kw |
| Rapid Traverse(X/Y/Z) | 48000/48000mm/48000mm/min |
| Cutting Speed | 18000mm/min |
| Spindle Taper Diameter | BT40 |
| Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm |
| Total Electricity Demand | 20kw |
| Machine Size | 2450*2200*2500mm |
| Machine Weight | 5.0ton |
| Linear guide rail and ball screw | Taiwan Hiwin |
| Accessories | Tool box (1 set) Tool Holder(2 pcs) vise and Lock knife seat (1 set) Machine operating manual Operation and programming manual Servo Motor and Controller Manual High pressure spray gun(1 pcs) Chip conveyor |
| Machine Head Balance System | Comes with counterweight balance system |
| Coupling | German BK3 SW*J |
| Main electrical accessories | German Schneider, Merlin Gerin |
| Circuit breakers and relays | German Schneider, Merlin Gerin |
| Working LED lamp | Taiwan |
| Hand control electronic hand wheel | Taiwan |
Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
4th/5th rotary table optional:
