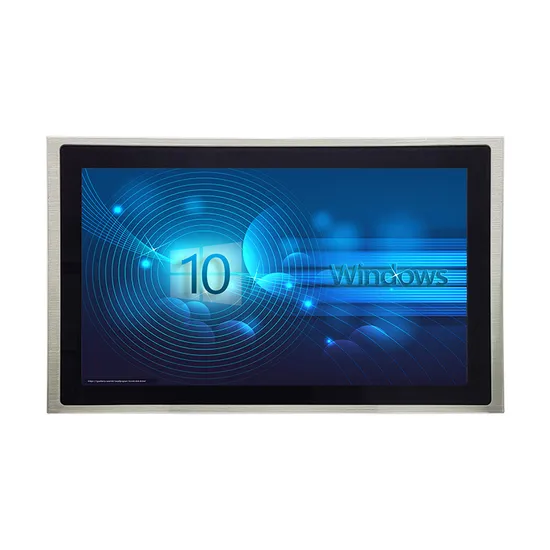

21.5-Inch Industrial Touchscreen PC with Intel Core I5

Product Description

Discover the 21.5-inch Full IP67 Waterproof Stainless Steel All-in-One Barebone PC featuring the Core I5-1135G7 processor, 8GB RAM, and 256GB storage. Engineered for industrial use with a responsive touchscreen, this robust device ensures seamless performance in the toughest environments.
Main Products
Feedback
Product Description
Outstanding Features:
1. Constructed with a stainless steel 304 front frame and back shell, complemented by a sandblasted and oxidized aluminum alloy heat sink plate, this device boasts a fin design for maximum heat dissipation. It is built to resist UV rays and discoloration, ensuring a Full IP67 waterproof rating.
2. The front frame and back shell are meticulously sealed with waterproof tape, allowing for disassembly and maintenance without compromising waterproof performance.
3. Equipped with an industrial-grade LCD screen offering full viewing angles and 1000 nits brightness for visibility even under sunlight. Brightness is smoothly adjustable via PWM software.
4. Features a 10-point capacitive touchscreen with an AG anti-glare surface and EETI touch control solution, ensuring precise touch functionality even with water droplets on the screen.
5. Enhanced with optical bonding for superior display clarity and durability.
6. Built using top-tier industrial-grade components, this device operates efficiently 24/7 and is capable of wide temperature operation ranging from -20 to 70ºC.

PC
CPU	Intel® Core I5-1135G7, 4 Cores, 8 Threads, Turbo 4.2 Ghz, Fanless
Chipset	Tiger lake-U
Memory	8G DDR4 (Max 32G)
*** Capacity	256G SSD
*** Optional	SSD: 256GB, 512GB, 1TB, 2TB
	HDD: 500GB, 1TB, 2TB
Network	1x 2.5G network, 1x I219 Gigabit, supports ***
Wireless Network	WIFI, Bluetooth, 4G Optional
Preinstalled OS	Windows 10 Pro 64bit
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
I/O waterproof connectors
USB	2×IP67 USB2.0
LAN	1×IP67 2G RJ45
Video Outputs	1×IP67 HDMI
COM	2×IP67 RS232
Power input	1×IP67 9-36V DC
Other	1× IP67 Breather valve,1× IP67 Power on/off button
LCD panel
Panel size	21.5"
Display active area	476.064(W)x267.786(H) mm / 18.743x10.543 in
Resolution	1920*1080 16:9
Brightness (cd/m²)	1000 nits, sunlight readable
Contrast ratio	1200:1
View angle	85°/85°/85°/85° (R/L/U/D)
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	10 Points capacitive touch
Surface hardness	7H
Surface treatment	Anti-Glare
Touch controller IC	EETI 80
Touch bonding	Optical bonding
Touch optional	Resistive touch, non touch, IR touch
Power Supply
Working voltage	DC 9-36V
Power consumption	60W
Power adapter	AC 100 ~ 240V input and DC +12V@8A MAX output, 96W
Other
Material	Stainless steel 304+Aluminum alloy heat sink plate
Mounting	VESA mount 75/100
IP grade	Full IP67 waterproof
Temperature Range	Operating: -20 to 70°C, storage: -30 to 80°C
Accessories	Waterproof adapter*1, waterproof USB cable*4, waterproof serial cable*2, waterproof network cable*2, waterproof HDMI cable*1
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
