Industrial Vacuum Emulsifying Mixer for Creams and Lotions

Product Description

Hot sale stainless steel mixer Vacuum Emulsifying Mixer RHJ-U vacuum eumulsifying mixer
Suitable: cream,paste, foundation,ointment, lotion, gel, conditioner, milk, sauce, etc
Capacity: 5~5000L
Contact part: SUS304/316L (three jackets, contact material parts adopt SUS316L, the other two layers adopt SUS304)
Homogenizer speed: 0~3600rpm
Scraper speed: 0~80rpm
Lifting: hydraulic lifting system
Heating: by steam/electrically
Operation: automatically (PLC)/manually
Main Composition

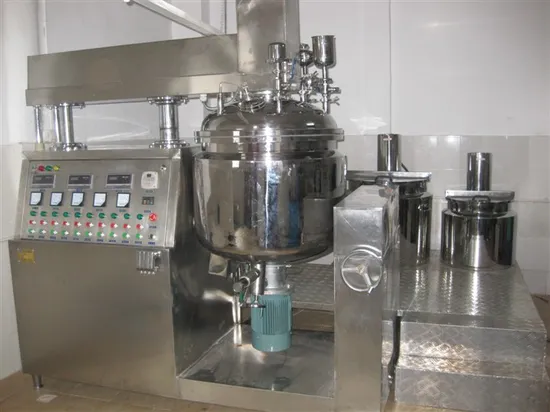

The vacuum emulsifying mixture is mainly composed of water pot,oil pot,emulsify pot,vacuum system,lifting system(optional),electric control system(PLC is optional),operation platform,ect.
Usage and Application Field
The product is mainly applied in such industries as daily chemical care products,biopharmaceutical industry,food industry,paint and ink ,nanometer materials,petrochemical industry ,printing and dyeing auxiliaries,pulp& paper,pesticide fertilizer ,plastic&rubber,electric and electronics,fine chemical industry,ect,the emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Performance & Features
The vacuum emulsifying produced by our company include many varities. The homogenizing systems include upper homogenization, lower homogenization,internal and external circulating homogenization. The mixing systems include single-way mixing,double-way mixing and helical ribbon mixing. The lifting systems includes single-cylinder lifting and double-cylinder lifting. Varies high quality products can be customized according to customer 's requirements.
The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.
The homogenization structure made through. German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4200 rpm and the highest shearing fineness can reach 0.2-5um.
The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum material sucking is adopted, and especially for the power materials,vacuum sucking can avoid dust.
The emulsifying pot lid can adopt lifting system ,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
According to technological requirements ,the tank body can heat or cool the materials. The heating modes mainly include steam heating or electric heating to ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the internal standards.
Technical Parameter

Model	Capacity (L)	Stir motor		Homogenizer		Total power			Outline Dimensions WxHxL	(Mpa) Limit vacuum
		KW	r/min	KW	r/min	Electric heating	Steam heating
RHJ-U5	5	0.18	0-63	0.37	0-3000	5	2		1260x540x1600/1850	-0.09
RHJ-U10	10	0.37	0-63	0.75	0-3000	6	3		1300x580x1600/950	-0.09
RHJ-U50	50	1.1	0-63	3-5.5	3000	18	9		2600x2250x1950/2700	-0.085
RHJ-U100	100	1.5	0-63	4-7.5	3000	32	13		2750x2380x2100/2950	-0.085
RHJ-U200	200	2.2	0-63	5.5-11	3000	45	15		2750x2750x2350/3350	-0.085
RHJ-U300	300	2.2	0-63	7.5-11	3000	49	18		2900x2850x2450/3500	-0.085
RHJ-U500	500	4	0-63	11	3000	63	24		3650x3300x2850/4000	-0.85
RHJ-U1000	1000	5.5	0-63	15	3000	90	30		4200x36503300/4800	-0.85
RHJ-U2000	2000	7.5	0-63	15	3000	-	40		4850x4300x3800/5400	-0.85

Guangzhou Li&Li Professional Chemical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.
