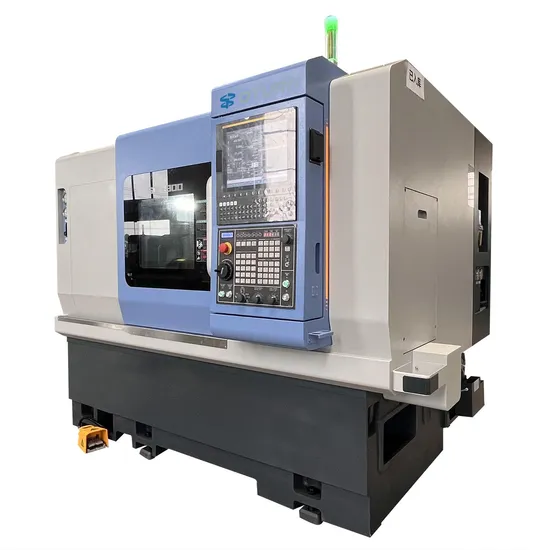

Oturncnc Sy800 Slant Bed CNC Lathe Turning Machines Metal Turret CNC Lathe

Product Description

Product Description
1.Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. 1.Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, 2.adopt a rear-mounted rotor, which makes installation and maintenance faster, 3.the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. World-class high-rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high-rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by programmable or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various types of equipment can be designed and installed according to the special requirements of the user. Special fixture. Product Parameters

	Name	Unit	SY800
Travel	Max. upward rotation of bed surface	mm	Φ700
	Max. processing diameter	mm	Φ650
	Max. processing diameter on tool holder	mm	Φ350
	Max. processing length	mm	790
Spindle Cylinder Chuck	Spindle nose	type	A2-6
	Spindle maximum speed	rpm	4000
	Cylinder/Chuck	lnch	10″/8″
	Spindle bore diameter	mm	Φ79
	Bar diameter	mm	Φ65
	Spindle motor power	kw	15/18
	Spindle motor torque (1:1.4)	Nm	134-196
X/Z axis feed	X/Z axis limit travel	mm	350/960
	X/Z axis rail specifications	spes	45 pin roller
	X/Z axis screw specifications	mm	4012
	X/Z axis motor power	kw	2.9
	positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	X/Z axis rapid movement	m/min	24/24
Servo Turret	Tool station	pcs	12T
	Outside diameter tool holder specifications	mm	25X25
	Inner diameter tool holder specifications	mm	Ф40
	Adjacent tool change time	sec	0.2
	Positioning accuracy	/	±2"
	Repeatability	/	±1"
Tail stock	Hydraulic tailstock	/	Hydraulic tail seat
	Maximum travel of tailstock	mm	630
	Tailstock sleeve tapered hole	type	Mos 5#
	Tailstock sleeve diameter	mm	Ф100
	Sleeve stroke	mm	100
Mechanical Size	Overall dimensions (length x width x height) approx.	mm	3500*2110*2100
	Weight (approximately)	kg	6700
Other	Cutting fluid tank volume	L	250
	Cooling water pump power	W	750
	Hydraulic unit box volume	L	40
	Hydraulic oil pump motor power	kw	1.5
	Lubricating oil tank volume	L	2
	Automatic lubrication pump motor power	W	50
