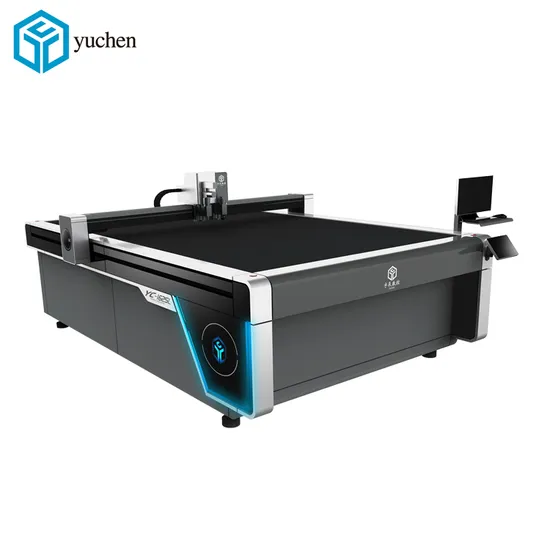

CNC Equipment Blade Packaging Box /Paper Board Cutter Machine From China
| US$13,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YC-1625L
Condition
New
Control
Automatic
Application
Paper, Corrugated Board, Grey Card,Acrylic, Foam,etc
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
2500*1600mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month
Product Description
CNC equipment blade packaging box /paper board cutter from chinaModel: YC-1625L Machine size can be customized
Brand: Yuchen
Applicable cutting materials: corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EVA, EPE and other similar materials
Functions: cutting, Creasing, V groove cutting
Equipments: creasing tool, V-cut cool, oscillating cutting tool
Parameter:
| Model | YC-1625L | YC-1630L | YC-1625A |
| Working area | 2500×1600mm | 3000×1600mm | 2500×1600mm |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | ||
| Safety device | Infrared adopted; sensitive response; safe and reliable | ||
| Maxi cutting speed | 1200mm/s | ||
| Translational velocity | 1500mm/s | ||
| Applicable materials | corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EVA, EPE and other similar materials | ||
| Multifunctional head | creasing tool, V-cut cool,routing tool, oscillating cutting tool | ||
| Cutting thickness | 0.1-10.0mm(subject to the material cutting) | ||
| Cutting tolerance | ±0.1mm | ||
| Transmission interface | Ethernet | ||
| Transmission system | Motor:Panasonic or Fuji Linear rail:Hiwin | ||
| Fixed mode | Vacuum absorb | ||
| Supply voltage | AC 220V 380V±10%,50HZ | ||
| Rated power | 11KW | ||
