Linear Lifting Mechanical Manual Swl Gearbox Reducer Electric Motor Drive Elevator Motorised Worm Gear Screw Jack Lifter
| US$40.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWL2.5-120
Type
Mechanical Jack
Structure
Screw Jack
Capacity (Load)
1 to 120 Ton
Power Source
Manually Operated, Motor Driven
Max Height
>400mm
Certification
CE, ISO 9001:2008
Condition
New
Worm Gear Ratios
5:1, 6:1, 8:1, 9:1, 10:1, 12:1, 20:1, 24:1, 32:1
Lifting Screw Ends
Top Plate, Clevis End, Threaded End, Plain End
Mount Types
Upright Mount, Inverted Mount
Input Types
Input Shaft, Motor Flange, or Both
Lifting Screw Diameter
14mm to 160mm
Travel Length
10mm - 10000mm
Lifting Screw Designs
Translating Screw, Keyed Screw, Rotating Screw
System Arrangements
Pair, Three, Four, Six, Eight Jacks Lifting System
Model
HK 35 40 50 60 60b 70 100 120 130 150
Power 1
0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw 1.5kw
Power 2
2.2kw 3kw 4kw 5.5kw 7.5kw 11kw 15kw 22kw 30kw 37kw
Input Speed
300rpm 600rpm 900rpm 1200rpm 1500rpm
Input Motor
AC Induction Motor, DC Brush or Brushless Motor
Transport Package
Carton+Wooden Case
Specification
SWL1 SWL2.5 SWL5 SWL10 SWL20 SWL25 SWL35 SWL50
Trademark
ANG Drive
Origin
China
HS Code
8483409090
Production Capacity
30000PCS Per Month
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 60.00cm
Package Gross Weight
15.000kg
Product Description
Linear Lifting Mechanical Manual Swl Gearbox Reducer Electric Motor Drive Elevator Motorised Worm Gear Screw Jack Lifter Product Description1. Suitable for heavy load, low speed, and low frequency;
2. Main components: precision trapezoid screw pair and high precision worm gear pair;
3. Compact design, small volume, lightweight, wide drive sources, low noise, easy operation, convenient maintenance

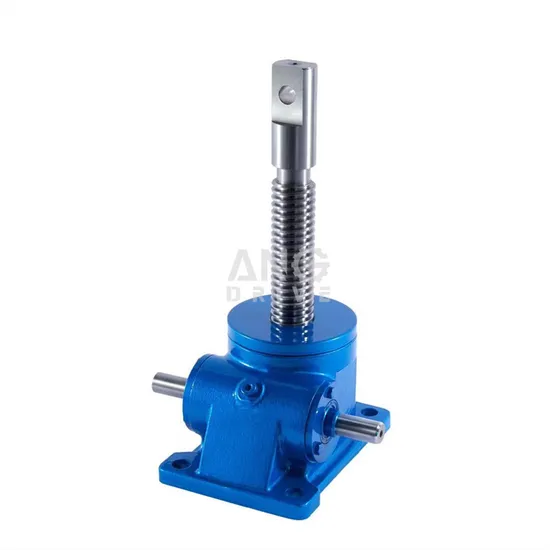

Detailed Photos
Product Parameters
| Type | Model | Screw thread size | Max lifting strength kN | Max pull force kN | Weight without stroke kg | Screw weight per 100mm |
| SWL Screw jack | SWL2.5 | Tr30*6 | 25 | 25 | 7.3 | 0.45 |
| SWL5 | Tr40*7 | 50 | 50 | 16.2 | 0.82 | |
| SWL10/15 | Tr58*12 | 100/150 | 99 | 25 | 1.67 | |
| SWL20 | Tr65*12 | 200 | 166 | 36 | 2.15 | |
| SWL25 | Tr90*16 | 250 | 250 | 70.5 | 4.15 | |
| SWL35 | Tr100*18 | 350 | 350 | 87 | 5.20 | |
| SWL50 | Tr120*20 | 500 | 500 | 420 | 7.45 | |
| SWL100 | Tr160*23 | 1000 | 1000 | 1010 | 13.6 | |
| SWL120 | Tr180*25 | 1200 | 1200 | 1350 | 17.3 |
Product structure
Typical models
Typical applications
Certifications
FAQ
Q: Can you make the screw jack gearbox reducer with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. A sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with a different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
