2L 5L 15L Plastic Extrusion Blow Molding Tongjia China Bottles Blowing Machine

Product Description

Product Description

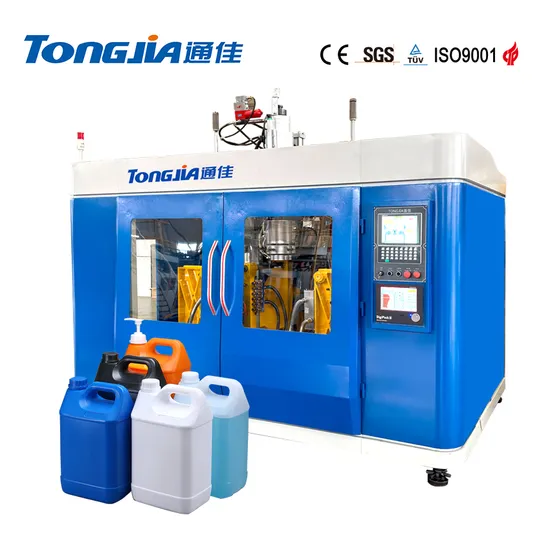

Tongjia TJ-HB series single-station hollow blow molding machine is mainly composed of extrusion system,mold opening
and closing system, die head system, hydraulic and pneumatic system and electrical control system.
This series of blow molding machines can be equipped with single, double and multi die heads and single, double and
multi-layer composite die heads according to customer needs. It can manufacture blow molding machines suitable for processing
various special shaped and special raw materials for users, and can be used for processing PE, PP, ABS, EVOH, TPU and other
products.
This series of equipment is suitable for producing hollow products such as plastic bottles, barrels, cans, etc., ranging from 10 ml
to 15 liters. Such as: milk bottles, oil jugs, detergent bottles, laundry detergent barrels, wine jugs, vinegar jugs, etc.

Configuration
Clampingsystem	Single work station translation + High-precision linear guideway
Extrusion system	Hardened face gear reducer + Imported frequency inverter
Die system	Special steel center-feeding die
Hydraulic system	AlI imported hydraulic valve, seal parts + Electro-hydfaulic proportional control
Control system	Imported PLC + Imported Human-machine interface + PLC automatic temperature control module

Parameters
Specifications	Units	TJ-HB2L	TJ-HB5L	TJ-HB15L
Material		PE PP.PVC.PA …	PE PP.PVC.PA …	PE PP.PVC.PA …
Max.product capacity	L	2	5	15
Die quantity	Set	1.2.3.4 …	1.2.3.4…	1.2.3.4 …
Machine dimension	M	2.9X2.1X2.4	3.7X2.1 X2.8	3.8X2.3X3.1
Machine weight	Ton	3.2	7.8	8.3
Die-head
Max.diameter of die	mm	70	140	150
Center distance of double die	mm	120	160	180
Die head heating power	KW	5.2	9.4	11.3
Die head heating zone quantity	zone	3	3	3
Clamping Unit
Clamping force	KN	90	90	110
Distance between platens	mm	135-485	230-620	230-620
Toggle stroke	mm	400	500	500
Mold platen size	mm	320X380	320X380	380X425
Extruder unit
Screw diameter	mm	55	65	75
Screw L/D ratio	L/D	25	25	25
HDPE plasticizing amount	Kg/h	60	70	90
Screw heating zone quantity	zone	3	3	3
Screw heating power	KW	10.8	13.8	14.2
Extruder driving power	KW	15	15	22
Power
Total power consumption	KW	42	49.2	58
Hydraulic drive power	KW	11	11	11
Cooling water consumption	m3/h	2	3	4
Cooling water pressure	Mpa	0 3-0.6	0 3-0.6	0 3-0.6
Air pressure	Mpa	0.8	0.8	0.8
Air consumption	m3/min	0.4	0.8	1

About us
After Sales Service
1.12 Hours----We will give you reply within 12 hours.
2.Pre-sale service----We provide your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional engineers, free designs.
5.Certificates----The third-party verification service provider.
6.After sales service----OEM service provide; Design service provide; Buyer label provided.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in China.
2.In the plastic machinery field, we have more than 30 years of relevant experience.
3.Our products extend all over the national and over 90 countries and areas of the world.
4. Our spare parts are international famous brand components.
5. Engineering team provide you with the most suitable model towards your products.
6.We will send our engineers to your factory installation the machine and train your worker after the machine
arrive your factory.
7.We will offer our best price and quality and hope have a good cooperation with you.
8.Our machines run stable, high output and our technology from German. FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can
not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
