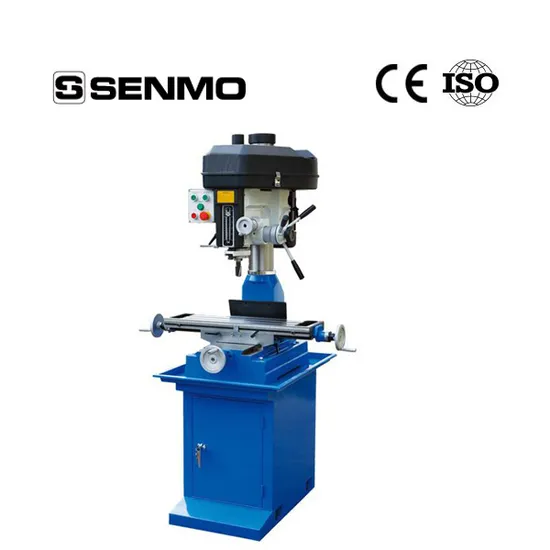

Milling Drilling Machine Zx30 Hobby Mini Machine for Housework
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX30
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Spindle Taper
Mt3/R8
Worktable Size
730X210mm
Worktable Travel (X/Y)
500/230mm
Spindle Travel
130mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Milling Drilling Machine ZX30 Feature |
| ·Very easy to operate |
| ·Aluminium alloy pulley, stable transfer |
| ·ABS pulley shield, pleasing shape |
| ·Belt drive, low noise |
| ·Strong iron casting column |
| Specifications | ZX30 |
| Max. drilling capacity (iron/steel) | Ø31.5/25mm(MT4) |
| Max. mill capacity (face/end) | Ø76/20mm |
| Spindle taper | MT3/R8 |
| Worktable size | 730x210mm |
| Worktable travel (X/Y) | 500/230mm |
| Spindle box swivel degree | 360° |
| Spindle travel | 130mm |
| Spindle nose to worktable | 440mm |
| Spindle speeds | 50HZ:100-2080/60HZ:140-2436rpm |
| Motor | 1.5kw 1450rpm |
| N.W/G.W | 300/350kg |
| Packing size (LxWxH, include foot) | 950x760x1150mm |
| 20' Container | 28sets |
| Standard Accessories | Optional Accessories |
| Draw bar | Foot stand |
| Adapter | Oil pan |
| Taper shank for drilling chuck | Cooling system |
| Drilling chuck | Working light |
| Arbor | Worktable power feed system |
| T slot bolt | Spring collet |
| Washer | Vice |
| Nut | Milling collet |
| Tilted wedge | Milling clamp |
| Spanner | |
| Oil gun |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
