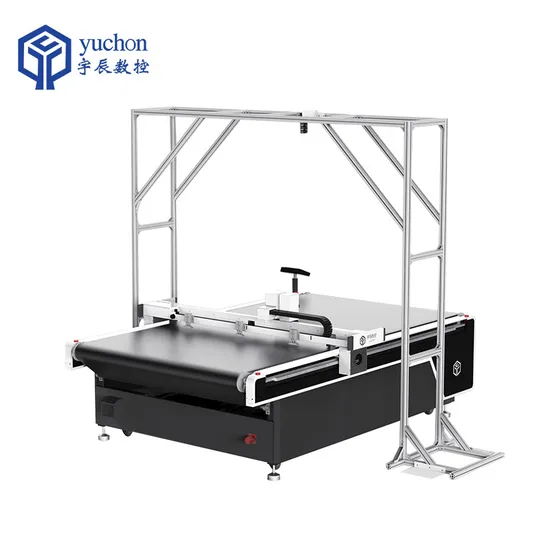

Sole Insole Upper Automatic Oscillating Knife Cutting Machine for Shoes Marking
| US$9,000.00-16,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YC-1625A
Power Source
Electric
Automatic Grade
Automatic
Warranty
3 years
Certification
CE, ISO
Name
Fiberglass Cutting Carbon Prepreg Cutting Machine
Model
Yc-1625A
Max. Cutting Speed
1200mm/S
No-Load Speed
1500mm/S
Multifunctional Head Cutting Tools
Oscillating Knife, Driven Rotary Cuttting Tool
Cutting Thickness
0.1-20mm
Cutting Accuracy
0.1mm
Transmission Interface
Ethernet
Motor
Panasonic Servo Motor
Transmission System
Taiwan Brand Linear Guide Rail and Rack
Fixed Mode
Vacuum Pump
Rated Power
11kw or Others
Operation Properties
Online
Safety Device
Infrared Blocking Device, etc
Cutting Materials
Fabric, Leather, PVC and Other Flexible Materials
Transport Package
Plywood Case
Specification
2500*1600mm
Trademark
Yuchon
Origin
Shandong Jinan
Production Capacity
50 Sets/Month
Product Description
Sole Insole Upper Automatic Oscillating Knife Cutting Machine for Shoes MarkingModel: YC-1625A Machine size can be customizedBrand: YuchonApplicable cutting materials: Foam, EVA, Sponge, Paper sitcker EVA ,Graphite,Telfon Fabric,PTFE,Silicon Rubber,PET,etc.Application: Packaging Industry, Foam Industry. Gasket Industry;Functions: cutting(Oscillating Cutting Tool, Penumatic Knife Cutting Tool).Features: Oscillating knife cutting, fast speed, high efficiency; with nesting software can help customer to saving material, more convenient and easier to operate for user.
Product Parameters
| Model | YC-1625L YC-1625A | YC-1630L YC-1630A | YC-1830L YC-1830A | Other sizes are customizable |
| Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm | |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | |||
| Safety device | Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable | |||
| Max. cutting speed | 1200mm/s | |||
| No-load speed | 1500mm/s | |||
| Multifunctional head cutting tools | Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc. | |||
| Cutting thickness | 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional) | |||
| Cutting accuracy | ±0.1mm | |||
| Transmission interface | Ethernet | |||
| Transmission system | Panasonic Servo Motor/SMTYCC Linear rail and rack | |||
| Fixed mode | Vacuum absorb | |||
| Supply voltage | AC 220V 380V±10%,50HZ | |||
| Rated power | 11KW or others | |||
After Sales Service
FAQ
1.Payment terms:
L/C,Western Union,T/T,Paypal
2.Delivery time:
Standard machine:7-15 days
Customized machine:10-25 days
3.Packing:
Plastic film inside and plywood case for outside packing
4.Transportation fee
Ship by sea or airplane, railway.
5.Trainning
We offer video teaching,and we have professional technicians who will help you to install, guide and train
6.After sales service
1).3 year warranty.
2).Life time free maintenance service.
3).24 hours online service, free technical support with different languages.
4).Door to door technical support when needed.
