Double Layer Corrugated Steel Sheets and Tiles Roll Making Machine
| US$12,000.00-18,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YX25-840
Tile Type
Colored Steel
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Hydraulic Pressure
Productivity
20-25m/Min
Voltage
380V/50Hz/3pH
Volume
6800*2000*1300mm
Weight
6500kgs
Hydraulic Power
1.5kw
Forming Steps
14steps
Material Width
1000mm
Effective Width
840mm, 900mm
Material Thickness
0.3-0.6mm
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Standard Package for Export
Specification
8000*2000*1300mm
Trademark
XHH
Origin
Fujian China(Mainland)
Production Capacity
20sets/Moths
Product Description

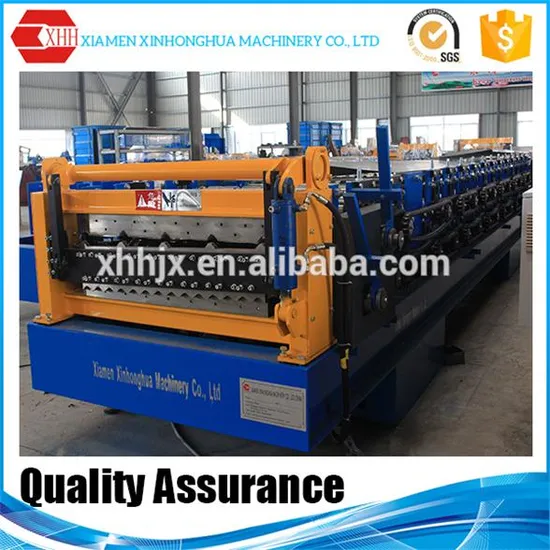

Double layer roof roll forming machine & metal roofing roll forming machine 1. Specifications of double layer roofing machine
1).Main Techincal Data:
| 1. | Model Number | YX25-840 | YX15-900 |
| 2. | Size | 6800*2000*1300mm | 6800*2000*1300mm |
| 3. | Weight | 6500KGS | 6500KGS |
| 4. | Motor Power | 5.5KW | 5.5KW |
| 5. | Hydraulic Power | 1.5KW | 1.5KW |
| 6. | Voltage | 380V/50HZ/3PH | 220V/60HZ/3PH |
| 7. | Forming Steps | 14 steps | 8steps |
| 8. | Processing Speed | 20-25m/min | 20-25m/min |
| 9. | Thickness | 0.3-0.6mm | 0.3-0.6mm |
| 10. | Feeding Material Width | 1000mm | 1000mm |
| 11. | Effective Width | 840mm | 900mm |
| 12. | Height of Roofing | 24mm | 24mm |
2). Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.
