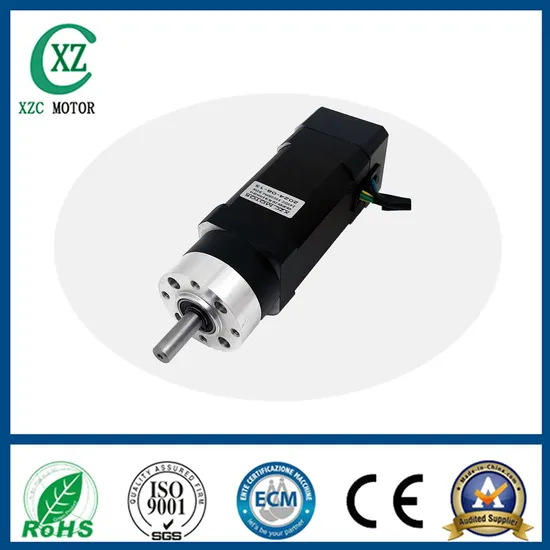

Xzc42 High Torque Low Noise Electric 24V Brushless Micro DC Planetary Reduction Universal Gear Motor for Robotics Industry

Product Description

Product Parameters

Model	Number of Phase (Phase)	Rated voltage(VDC)	Rated speed(pm)	Rated torque(N.m)	Rated power(watts)	weight(g)	Body length(m)
XZC42BL80S09-230	3	24	3000	0.28	90	1050	80

(ltem)	(Standard)
Winding type	Star/Delta
Hall effect angle	120 degree electric angle
Shaft runout	0.025mm
Radial play	0.06mm/50g
End play	0.05mm/50g
Max radial force	28N/20mm from the flange
Max axial force	10N
Insulation class	Class B
IP class	IP40
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩmin 500VDC

Product Description
Planetary gear motor is a device that combines a planetary gear reducer and an electric motor, and is widely used in situations where speed reduction and torque increase are required.
Advantages:
High efficiency: The design of the planetary reducer makes the energy loss small and the efficiency is as high as 95% or more.
High torque density: It can provide large torque in a small size, suitable for applications with limited space.
Uniform load distribution: The planetary gear structure makes the load evenly distributed, reduces gear wear and prolongs the service life.
Low noise: It runs smoothly and the noise is relatively low, suitable for noise-sensitive environments.
Application areas:
Automation equipment: such as robots, conveyors, etc.
Industrial machinery: such as machine tools, transmission systems, etc.
Power tools: high-performance electric drive tools.
Automotive industry: used for electric power steering systems, etc.Our Advantages
Related product display
Application areas
Company Profile
Changzhou Xinzhichuang Electromechanical Technology Co., Ltd. is located in Changzhou, Jiangsu. It is a professional manufacturer integrating R&D and production of various types of brushless DC motors, AC/DC servo motors, stepper motors and their control systems. Products include brushless DC motors, AC/DC servo motors, hybrid stepper motors, stepper reduction motors, motor drivers, electrical control systems, etc. The products are mainly used in automation equipment and instruments in various industries such as printers, engraving machines, 3D printers, financial equipment, medical instruments, and textile industries. Accurate market positioning, efficient and professional R&D team, and first-class product quality make Changzhou Xinzhichuang Electromechanical Technology Co., Ltd. a major provider of domestic brushless DC motors, AC/DC servo motors, stepper motors and control system solutions.
Certifications
The company began to introduce the quality management system in 2022 and obtained the GB/T19001-2016 idt IS09001:2015 quality management system certificate. In 2022, the brushless motor series and servo series products obtained the export product safety license-EU "CE" certification. The products are exported to Europe, America, South Asia, Africa and other parts of the world, and have established long-term and stable cooperative relations with many well-known companies.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, AC Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:lf you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Q: Can I ask you for help if I know nothing about motor?
A: Yes, our pleasure. We are nice people with big hearts.
