1 Pc KA042CP0 Equal Section Thin Bearing Thin Section Bearing Cross Section 6.35mm 107.95x120.65x6.35 KA 042 CP0

Product Details

Product Description

Product Description
KA042CP0 Equal Section Thin Bearing Thin Section Bearing Cross Section 6.35mm 107.95x120.65x6.35 KA 042 CP0

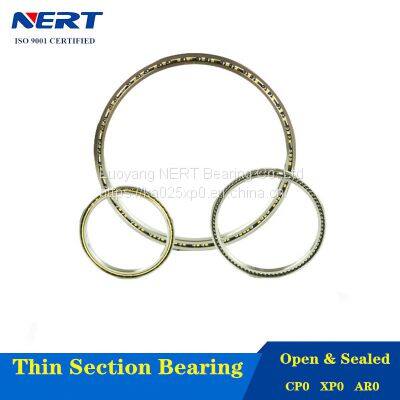

KA042CP0 Thin section radial contact ball bearing belongs to KA SERIES of thin section ball bearings, the KA SERIES include KACP0, KAXP0 and KAAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested.
Technical Parameters:
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Cross Section 1/4″ x 1/4″
Part Number KA042CP0(NKA042CP0)
Bore Dia (d) 4.250"(107.95mm)
Bore Dia Tolerance -0.0008"–0"
Outer Dia (D) 4.750"(120.65mm)
Outer Dia Tolerance -0.0008"–0"
Width (B) 0.25"(6.35mm)
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (lbs) 591
Static radial (lbs) 1370
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.200
About Our Stock
For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.
Our New Customer Bearings
Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested in the customized design, please feel free to leave a message or contact us directly.
The Applications of NERT Bearings
Our BOBI products are widely used in the following fields: Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
