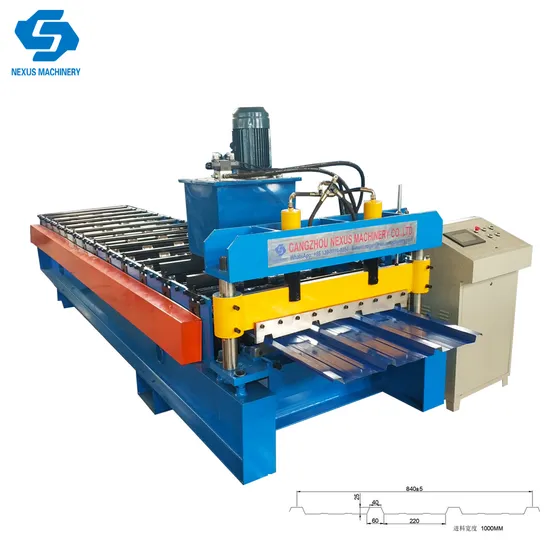

840 Widespan Roof Sheet Roll Forming Machine Metal Roofing Panel Machinery

Product Description

Product Description
840 Widespan Roof Sheet Roll Forming Machine Metal Roofing Panel Machinery is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.25mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
Work Flow
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
Profile Drawings
Product Parameters

Manual decoiler
Capacity	5ton
Feeding width	MAX 1000mm
Expanding range	460-520mm

Main motor power	5.5kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	13 groups
Raw material	0.3-0.8mm
Coil width	1000mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 5 ton
Size of machine	About 7500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC DELTA, made in Taiwan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	7 inch touching screen DELTA
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	4KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Equipment list :

No.	Product Name	QTY
1	5T Manual decoiler	1
2	Main Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	1
Sum		3

Character of main structure: The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming . It is very easy to install the equipment and suitable for producing in the factory. Low noise with high efficiency. Detailed Photos
