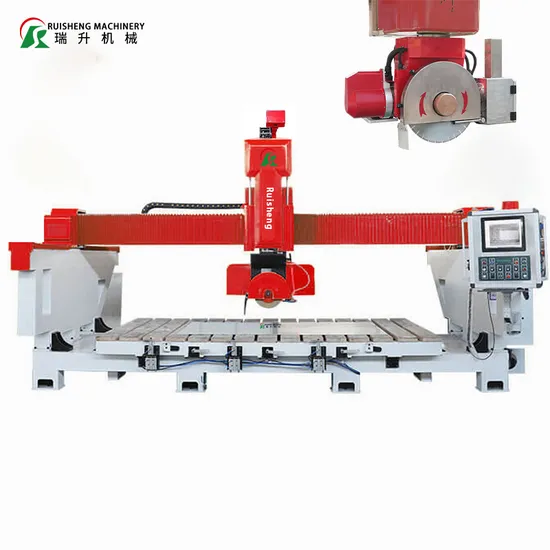

Ruisheng 5 Axis Machining Center Stone Cutting Machine for Granite Marble
| US$40,000.00-47,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RSZN-500-2
Type
CNC Cutting Machine
Usage
Ceramics, Red Brick, Jadestone, Cement Brick, Granite, Marble
Application
Machinery & Hardware, Art & Craft, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Max Disc Diameter
350-500mm
Main Motor Rotation Range
+360°
Main Motor Tilting Range
0-90°
Workbench Fliping Angle
85°
Transport Package
Film Packaging
Specification
6000kg
Trademark
Ruisheng
Origin
Fujian, China
Production Capacity
100 Pieces/ Month
Packaging & Delivery
Package Size
580.00cm * 390.00cm * 350.00cm
Package Gross Weight
5800.000kg
Product Description
Product Description5 Axis CNC Bridge Saw Machine uses Italian CNC control system to cutting high-quality, precise and efficient fabrication of stone, granite, marble, and engineered stone materials.
CNC 5 Axis Machine versatility, it can handle straight cutting, mitering cutting, hole drilling, sink cutting, profiling cutting, round cutting, arc cutting, and even straight and un-straight L shape cutting.
Product Parameters
| Product name | RSCNC-400 | RSCNC-600 | RSCNC-700 |
| Blade diameter | 300-400mm | 300-600 | 400-700 |
| X-axis stroke | 3300mm | 3300mm | 3300mm |
| Y axis stroke | 2000mm | 2000mm | 2000mm |
| Z axis stroke | 250mm | 500mm | 500mm |
| C axis stroke | ±361° | ±361° | ±361° |
| A axis stroke | 0-90° | 0-90° | 0-90° |
| Spindle speed | 0-6000r/min | 0-6000r/min | 0-6000r/min |
| Main motor speed | 18.5kw | 22kw | 22kw |
| Cutting thickness | 0-80mm | 0-170mm | 0-210mm |
| Platform size | 3200×2000mm | 3200×2000mm | 3200×2000mm |
| Flip angle | 0-85° | 0-85° | 0-85° |
| Total power | 28kw | 32kw | 33kw |
| Machine size | 5900×3400×3300mm | 5900×3400×3600mm | 5900×3400×3700mm |
| Weight | 4300kg | 6000kg | 6500kg |
1. Camera dimensions(standard configuration)
2. The knife function (Optional)
3. Thickness function (Optional)
4. Chuck function (Optional)
5. Cutter function (Optional)
Packaging & Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are one of the leading manufacturer in China.
Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-30 days after the deposit is received, If urgent, it can be negotiated.
Q: What's the warranty time?
A: One year, but technical support will be a lifetime.
