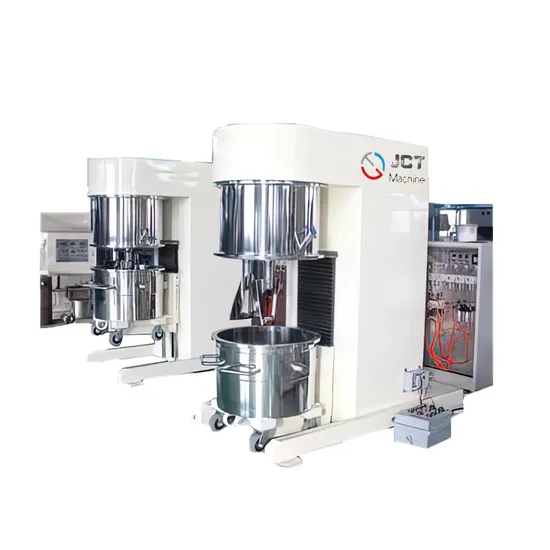

Double Planetary Vertical Kneader for Propellant/Explosive/Rocky/Missile Kneading

Product Description

A vertical kneader is a type of industrial mixing machine that is used to mix, knead, and homogenize various materials. It consists of a vertical cylindrical vessel with a rotating screw or agitator in the center, which creates a kneading action as the materials are pushed upward and then fall back down.
Vertical kneaders are commonly used in the chemical, pharmaceutical, and food processing industries to mix powders, granules, pastes, and other materials. They are particularly useful for mixing materials that have high viscosity, are difficult to mix, or require a long mixing time.

Introduction A typical vertical kneader consists of a cylindrical vessel with a vertical axis, which is typically made of stainless steel or other materials that are resistant to corrosion and wear. The vessel is closed at the top and bottom, and there is an inlet for adding materials to be mixed and an outlet for removing the mixed product.
Inside the vessel, there is a central shaft or screw that rotates around its axis, which is typically driven by a motor. The screw has multiple arms or blades attached to it, which are designed to push the materials upward as the screw rotates, and then allow them to fall back down under gravity.
The shape and configuration of the screw and blades can vary depending on the specific application and the characteristics of the materials being mixed. Some vertical kneaders have a single screw with multiple blades, while others may have multiple screws or agitators.
Technical parameters

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
	Full volume	Feeding amount		Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Inverter for frequency control if necessory.

Available products:
1. Unsaturated resins, alkyd resins, acrylic resins, polyurethane and other complete sets of production equipment;
2. Latex, white latex, rubber coating, film coating, all-purpose adhesive and other complete sets of production equipment;
3. Glass, plastic, silicone rubber, sealants and other sets of production equipment;
4. Raw rubber sets of production equipment;
5. Silicone waste pyrolysis recycling old solvent distillation recovery sets of production equipment;
6. Hot melt adhesive sets of production equipment;
7. Various types of powder mixing auger sets of production equipment;
8. Various non-standard chemical equipment design, production and installation.
about us
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
