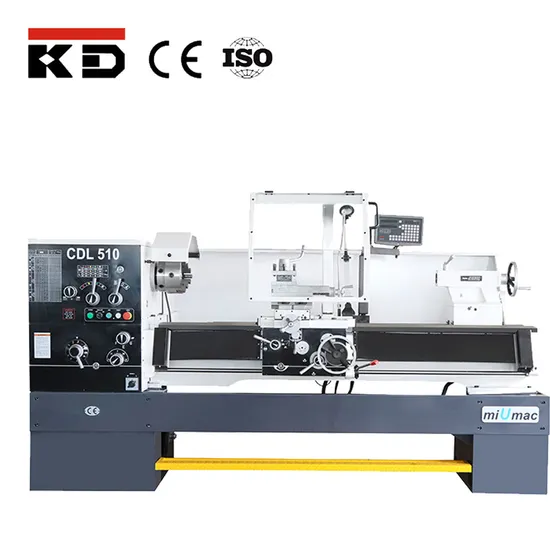

High Precision Engine Lathe Machine Cdl660 with 312mm Bed Width
| US$6,750.00-9,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CDL510
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
40/52mm
Bed Width
312mm
Spindle Speed
40-1800rpm
Max Swing Over Bed
500mm
Main Motor
5.5kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/ Year
Product Description
Conventional Metal Turning Lathe Machinery Cdl400/Cdl510/Cdl660Product Features
Product Specifications
| MODELS | CDL400 | CDL500 | CDL660 | |||
| CAPACITY | ||||||
| Max.swing over bed | Ф400mm | Ф540mm | Ф660mm | |||
| Max.swing over carriage | Ф255mm | Ф335mm | Ф460mm | |||
| Max. swing over gap | Ф570mm | Ф700mm | Ф820mm | |||
| Width of bed | 312mm | |||||
| Max.length of workpiece | 1000mm | 1500mm | 2200mm | |||
| Effective gap length | 200mm | |||||
| SPINDLE | ||||||
| Spindle nose | D6 | |||||
| Spindle bore | Ф52mm | |||||
| Taper bore of spindle | M.T.NO.6 | |||||
| Steps of spindle speed | 12 | 16 | 16 | |||
| Range of spindle speed | 40~1800rpm | 27~2000rpm | 27~2000rpm | |||
| THREAD RANGE/NUMBER | ||||||
| Metric pitch threads | 0.5~20mm/ 24 | |||||
| Inch threads | 72~1-5/8 TPI/ 61 | |||||
| Module threads | 0.25~10M.P/ 20 | |||||
| D.P.Threads | 96~3-1/4 D/ 45 | |||||
| FEED | ||||||
| Range of longitudinal feeds | 0.04~2.46 (0.0015″~0.0913″)mm | |||||
| Range of cross feeds | 0.03~1.23 (0.0006″~0.0365″)mm | |||||
| TAILSTOCK SLEEVE | ||||||
| Taper bore | M.T.NO.4 | |||||
| Max travel | 120mm | |||||
| External diameter | Ф60mm | |||||
| OTHERS | ||||||
| Size of tool shank | 20×20mm | 25×25mm | 25×25mm | |||
| Max travel of cross slide | 240mm | 350mm | 350mm | |||
| Max travel of compound rest | 100mm | |||||
| Main motor power | 4/5.5kw | |||||
