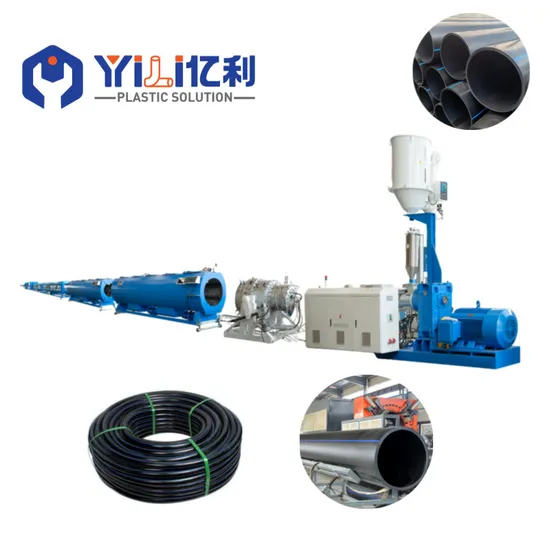

16-1600mm High Speed HDPE PE Water Plastic Pipe Gas Pipe Extrusion Machine Line for Making Plastic Pipes with High Efficiency

Product Description

Introduction
HDPE Pipe Extrusion Machine is widely used in the whole country water supply, water sewage, gas supply and house water supply project. It includes HDPE Plastic pipe extrusion machine, LDPE Plastic pipe extrusion machines, PPR/PERT Pipe extrusion lines, ect. YILI machinery adopts European most advance technology and develops with its own technical Strategy to ensure unique structure, high configuration, highly automation, easy operation of the whole pipe extrusion machine.
The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.
Technical Specification

33D Series Classical Production Line:
Model	OD (mm)	Extruder	Max. Output (kg/hr)	Max.Haul-off speed (m/min)
PEG63	Φ20-63	SJ65/33	220	15
PEG110	Φ20-110	SJ65/33	220	15
PEG160	Φ50-160	SJ75/33	400	12
PEG250	Φ75-250	SJ75/33	400	10
PEG315	Φ90-315	SJ90/33	500	8
PEG450	Φ110-450	SJ90/33	500	5
PEG630	Φ280-630	SJ120/33	850	3.3
PEG800	Φ400-800	SJ120/33	1000	1.8
PEG1200	Φ800-1200	SJ150/33	1300	0.8
38D Series High Efficient Production Line:
Model	OD (mm)	Extruder	Max. Output (kg/hr)	Max.Haul-off speed (m/min)
HPEG63	Φ20-63	HSJ60/38	320	30
HPEG110	Φ20-110	HSJ60/38	380	25
HPEG160	Φ50-160	HSJ60/38	460	15
HPEG250	Φ75-250	HSJ75/38	600	12
HPEG315	Φ90-315	HSJ75/38	650	10
HPEG450	Φ110-450	HSJ90/38	800	8
HPEG630	Φ280-630	HSJ90/38	950	5
HPEG800	Φ400-800	HSJ120/38	1300	2.5
HPEG1200	Φ800-1200	HSJ75/38 HSJ90/38	1400	1.2
HPEG1600	Φ1000-1600	HSJ90/38 HSJ90/38	1600	0.7

Tech Features & Advantages
We offer optimum spiral bush, which highly improves the capacity of extruder We offer unique screw design to ensure better plasticization of raw material We offer high torque and precisely designed gearbox to guarantee stable running of machinery We offer accurate temperature controlling system to optimize best the material melting performance We offer automatic water temperature and water level control of the vacuum and cooling tanks with large filters We offer 2-12 caterpillars of haul-off with servo motor control We offer SIEMENS most advanced PLC control to ensure the whole line to have best synchronization. Technology Process

-High performance Extruder, which is the key important part in the whole production line, it ensure high capacity, high efficiency and excellent plasticization
-Mould
Material: 40Cr
Design: Spiral or Basket
Single layer or Multi-layer design
-Vacuum tank
Material: SUS304, 5mm-7mm
Automatic water temperature and level control technology
Accurate calibration
-Cooling tank
Material: SUS304, 3mm-5mm
Fast cooling
-Haul-off
Drive: by frequency inverter to servo motor driving
High quality rubber belts or blocks
With encoder for pipe metering
-No-dust cutter
Design: Universal or Cast Aluminum fixture unit
No-dust smooth cutting
Servo motor synchronization control
-Dual Position coiler
Automatic pipe arranging
Pipe size: 16mm-110mm
