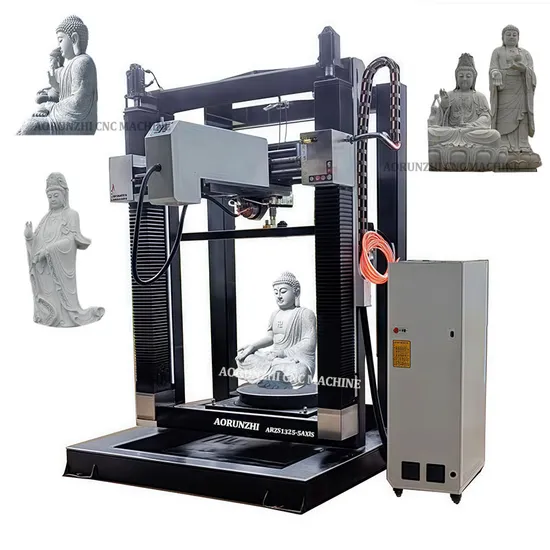

Vertical CNC Router for Granite Saint Statues Custom Height up to 3 Meters

Product Description

Heavy duty steel structure, keep machine with very good stability. The structure design is reasonable, the transmission is stable, and the continuous and smooth processing is ensured. Adopt top quality machine parts,to make machine with high performance and durability. The power system adopts domestic absolute value bus servo, which works at start-up and does not return to the original point. The reducer uses Nab tesco with low backlash RV reducer. Advanced LNC Control System control system with RTCP Tip Tracking ,very stable and convenient to use. Machine is with a big 5 axis rotary device, can process different kinds of 3d stone statues sculptures roman columns corbel pilasters cylinders pillars... The spindle can be selected with different models and power ratings depending on the customer's processed material. Compact structure, built-in cables within the allowable range of the spindle structure.

Model No.	ARZS1325-5AXIS
Lathe bed	heavy duty steel structure
X,Y,Z,A,C working size	2500*1300*700mm* -20°~+90°*360°
A,C rotating axis	264.6NM*264.6NM with DEMAS brand
Spindle power	11kw air cooling with change tool spindle
Transmission type	Taiwan TBI3210 ball screw drive
Guide type	Japan Panak 30 high-precision guide rail
Inverter	Delta
Control system	LNC Control System control system with RTCP Tip Tracking
Motor	Servo motor and driver
Reducer	Nab tesco with low backlash RV reducer
Auto oil system	yes
Voltage	AC380v,3 phase,50Hz

It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote
6. Provide process design and proofing for customers for free
7. Provide free thousands of galleries and learning tutorials as engraving materials, once updated in time to provide customers.8. Engineers available to service machinery overseas
Q1.How to get the most suitable machine and best price.Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What's the MAX size of these material ?( length ? Width ? Thickness ?) Q2.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.

Q3.Can you promise to deliver the machine in time?
Yes,we can.

Q4.How about your guarantee period?
One year ,three months for core components, such as motors. If you have any questions during this time,we will solve it for free.
