A to Z 5 gallon water bottle washer filler capper / mineral water washing filling capping machine in Africa

Product Description

Product Description
A to Z 5 gallon water bottle washer filler capper /
mineral water washing filling capping machine
Product Description
Functions and features:
This filling line specially for 3-5gallons barreled drink water,with type QGF-100,QGF-200,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together .
1.Automatic break protection for power leakage and short circuit;
2.Under-pressure protection: when incoming air's pressure is Less than or equal 0.5MPa, the equipment will be automatically stopped.
3.Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
4.Remarks:We can add other functions as customer's requirements like:hot tank heating washing,bottle external washing,cap washing ,capacity note and man-machine control.

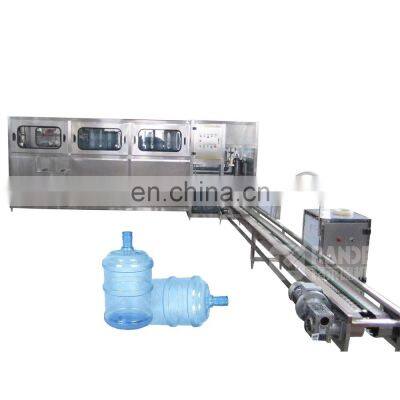

Whole 5 gallon water filling line:
Automatic cap pulling out machine
Automatic outside brusher washing machine
Outside brusher
Washing part
Filling and capping part
Main technical parameter

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	2	3	4	6	12
Volume	3&5 Gallon
Barrel size	Φ270*490mm
Capacity(b/h)	60-100	100-240	250-300	400-450	600-800	800-900	1000-1200
Air pressure(MPa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Air consumption(m³/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated voltage	380V/ 50HZ
Weight(KG)	680	800	1500	2100	3000	3500	4500

Related products
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
