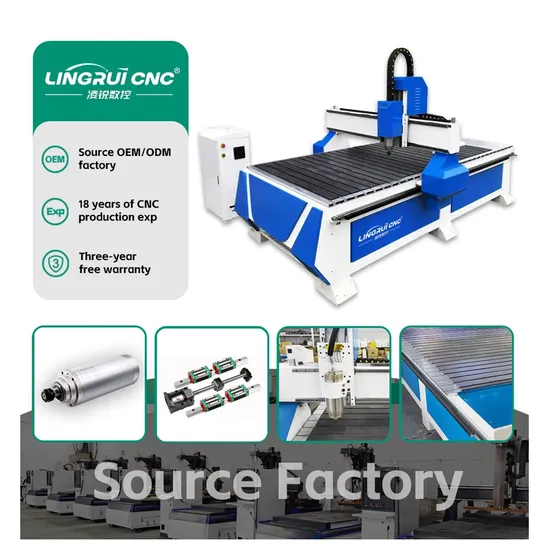

Hot Sale 3 Axis Router CNC Customized Wood Acrylic Cutting CNC Router Price 1325 1530 2030 Machine with Vacuum Table

Product Description

Product Description
Advantages of the new Inline tool change automatic CNC router: 1. It adopts HQD9/11KW high-speed air-cooled tool-changing spindle, which can automatically switch between 8/12/16 to meet the needs of diversified processing products and greatly improve the processing efficiency.
2. LNC CNC router special control system, equipped with industrial machine display screen, can run in the most stringent environment.
3. It uses double-rod pressure rollers, the height of which can be adjusted at will. When used with a vacuum adsorption table, it can achieve 0 movement of the plate. 4.Integrated gantry, better rigidity, smoother operation and higher machine precision. 5. Optional fully automatic feeding platform to increase production speed.
Detailed Photos
High-speed water -cooled inverter spindle
Adopt 3.5kW high-speed water-cooled variable frequency spindle, the speed can reach 24000rpm/min.
Thickened square tube welding frame
The frame is formed by integral steel mold and die-casting technology. The equipment runs faster. The thickened bed frame is used,
and the rectangular tube wall thickness is 10mm. The entire bed is processed by gantry milling, which greatly increases the
stability of the guide rail and effectively avoids deformation of the frame.
Aluminum alloy T -shaped table countertop
This machine is equipped with an aluminum alloy T-shaped slot worktable. The worktable is covered with a PVC protective layer to prevent damage to the worktable by cutting.
Taiwan Hiwin Guide rail/slider
TBI high -precision roller screw,High -precision oblique teeth shift - Precision 0.01mm,The speed can reach 28000mm/m - Fully
automatic lubrication.

Servo Motor
The machine uses a full servo motor to drive. The XYZ three -axis driver uses a high -precision TBI roller screw connection. It is driven by a closed -loop drive. With the silver guide rail/slider, it can achieve mute operation.

Product Parameters

XYZ working stroke/processing size	1300*2500*200mm
Bracket	Thickened cast iron gantry, cast iron bracket
Bed frame	Machining center processing bed (heavy-duty bed),Independent control cabinet
Spindle power	3.5KW high-speed water-cooled spindle
Drive mode	Stepper motor driver/research control/leadshine driver
Frequency converter	Best frequency converter
Spindle speed	6000-24000r/m
Mesa	Aluminum alloy T-slot countertop
Transmission mode	XY axis high-precision ground helical gear transmission + Z-axis high-precision TBI screw transmission
Slideway	Taiwan Hiwin High Precision 20 Straight Line Square Rail
Device cable	pure copper cable
Holdable tool shank diameter	3.175mm,4mm,6mm,,12.7mm etc.
Control system	Weihong v5.4.49 (supports resuming carving after power outage)
Lubrication system	Oil filling and maintenance system
Working voltage	AC380V/220V 50/60Hz
Compatible software	Artcam, type3, CAD drawing, CDR, solidworks UG powermill, etc.
Engraving instructions	Standard G code, u00, mmg, plt
Security system	All photoelectric limits of XYZ three-axis
Locating Accuracy	0.02mm
Engraving precision	0.01mm
Max woking speed	18000mm/min
Maximum idling speed	25000mm/min
Machine size	3100*2000*1650
Machine weight	1200KG
Toolbox	Including special tools for engraving machines, tool sets, tool holders, Weihong control cards, connection data cables, open-end
	wrenches, and pressure plates.

Packaging & Shipping
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Company Profile
Certifications
FAQ
1. Are you a factory or a trading company?
We are a factory with an export license.
2. Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4. How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5. Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
7. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
