Sdcnc Jy250g High Quality and Competitive Price Mini Lathe Small Manual Lathe Machine for Metal Cutting
| US$1,100.00-1,250.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JY250G
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Heavy Duty Lathe Machine
CNC or Not
Nomal
Core Components
Bearing, Gear, Motor
Name
Small Lathe
Transport Package
Wood Packing
Specification
1130 * 550 * 405
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
1130.00cm * 550.00cm * 405.00cm
Package Gross Weight
140.000kg
Product Description

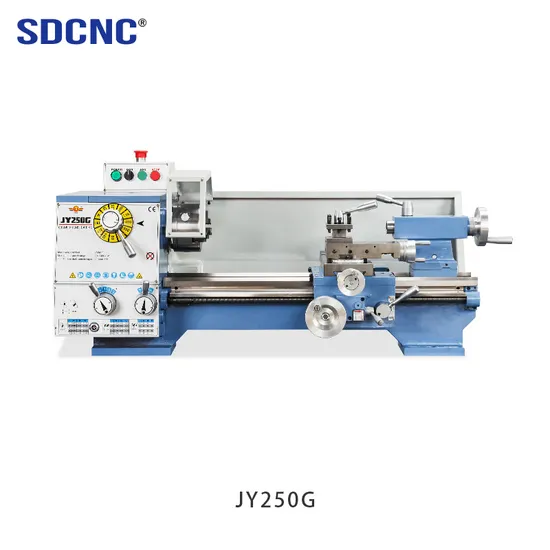

CE High precision mini /small manual metal lathe JY250G
6 speed gear change (AC asynchronous motor) with double screw lead
Product Parameters
| Model | TES-JY250G |
| Power | 750W |
| Voltage | AC 220V/3800V |
| Machine size | 1130X550X486mm |
| Machine weight | 180KG |
| Ps | This style can be purchased with a work cabinet. If you need it, please consult the backend for purchasing |
| Model | JY250/JY250V |
| Distance between centers | 550mm/750mm |
| Swing over bed | 250mm |
| Swing over cross slide | 145mm |
| Width of bed | 135mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 26mm |
| Number of spindle speeds | 6/variable speed |
| Range of spindle speeds | 125-2000/50-2000rpm |
| Range of longitudinal feeds | 0.07 -0.20mm /r |
| Range of inch threads | 8-56T.P.I |
| Range of metric threads | 0.4 -3.5mm |
| Top slide travel | 50mm |
| Cross slide travel | 115mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT2 |
| Motor | 550/750W |
| Packing size | 140 |
| Net weight | 120kg / 140kg |
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
