300A 350A 400A 450A 500A 32VDC Auto Bolt Down Anm Fuse

Product Description

300A 350A 400A 450A 500A 32VDC Auto Bolt Down ANM Fuse

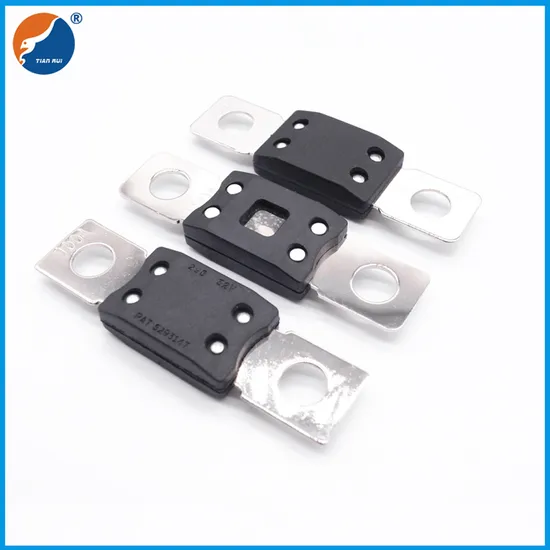

ANM Bolt On Car Fuse
Current: 40A-500A
Voltage: 32VDC
Material: Zinc alloy PPA-GF33HS
Certification: UL / UR / ROHS
Interrupting Rating: 2000A@32VDC
Operating Temperature Range: -40C to 125C

Product	ANM Fuse
Style	Bolt On Type
Current	40A 60A 80A 100A 125A 150A 175A 200A 250A 300A 350A 400A 450A 500A
Voltage	32V DC
Material	Copper/Zn alloy/ PA66/PPA
Function	Over-Current Protection
Application	Automotive
Package	1000pcs/bag

Parameter (Specification) of Bolt-on Auto ANM Fuse:
Bolt-on Auto Fuses:

Working Principle Of ANM Bolt-On Car Fuse:
When the temperature around the mega fuse rises to its operating temperature, the fusible alloy melts and contracts into a ball connected to two pin ends under the action of surface tension and special resin. In this way, the circuit of midi fuseis permanently cut off.
Dongguan Tianrui Electronics Co., Ltd is one of the most professional circuit protection components manufacturers and programme suppliers in China for about 10 years. Our products are widely used for the household electric appliances and auto industry. Our team will serve for you from the beginning of your source to the very end of the shipment. We are exporter based on factory so that the cost can be saved directly for you .
