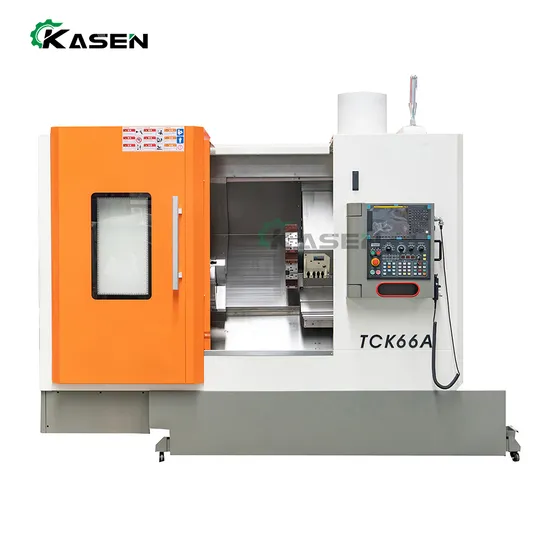

Taiwan′s Original High-Precision Accessories Tck66 CNC Slant Bed Lathe
Basic Info.
Model NO.
TCK66
Type
Turret Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
CNC Lathe Machine
Maximum Rotation Diameter on The Bed
660mm
Maximum Cutting Diameter (mm)
400mm
Repeatability (X/Y/Z) (mm)
0.003
Positioning Accuracy (mm)
0.005
Tool Installation Size (mm)
25X25
Spindle Bore
85mm
Spindle Nose
A2-8
Number of Tool Holders
Horizontal 8/12 Station
Spindle Speed
0-2800rpm
Voltage
220V/380V
Main Motor Power (Kw)
11/15kw
Tip Taper
Mt5
X-Axis Travel (mm)
260mm
Z-Axis Travel (mm)
800mm
Transport Package
Plywood Wooden Box
Specification
3300*2000*2100mm
Trademark
Kasen
Origin
China
HS Code
8458110090
Production Capacity
100 Sets/Month
Product Description
Taiwan's Original High-Precision Accessories Tck66 Cnc Slant Bed LatheProduct Description
Features:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the interna and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Product Parameters
| SPECIFICATIONS | UNIT | TCK66 |
| Max. swing dia. over bed | mm | 660 |
| Max. swing dia. over slide | mm | 400 |
| Max. work piece length | mm | 750 |
| Max. bar capacity | mm | 75 |
| Max. processing diameter(plate) | mm | 500 |
| Spindle nose | GB59001 | A2-8 |
| Spindle bore | mm | 85 |
| Spindle speed | rpm | 0-2800 |
| Spindle shift mode | | Variable frequency speed |
| Spindle motor power( continuous value) | KW | 11/15 |
| Chuck type | | hydraulic chuck |
| Chuck size | inch | 10 |
| X/Z axis rapid traverse | m/min | X:24 Z:24 |
| X/Z axis servo motor torque | N.m | X:10 Z:10 |
| X/Z axis travel | mm | X:260 Z:800 |
| Guide way type | | linear guide way |
| Turret type | | horizontal 8/12 station |
| Tool shank size | mm | 25*25/Ø32 |
| Tail stock type | | hydraulic |
| Tail stock quill dia. | mm | 100 |
| Tail stock quill travel | mm | 700 |
| Tail stock quill taper | | MT5# |
| Total rated power | KW | 18 |
| Total rated current | A | 38 |
| Net weight | kg | 5500 |
| Machine dimension(L*W*H) | mm | 3300*2000*2100 |
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
