BELLAD WZ40-28 Construction Equipment Multi-purpose Whole Frame 4WD 776 cheap backhoe loader

Product Details

Product Description

Product Description

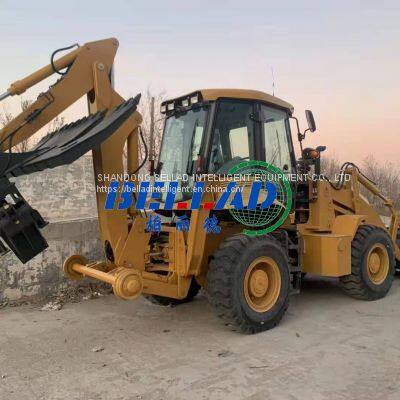

WZ40-28 Backhoe loader
Contact：Richie Shi
Title :Sales Manager
Mobile：+86 13356718553(whatsApp/wechat)
Email: richieshi@belladintelligent.com
Main fature
1-The use of high-reliability hydraulic torque converter and Gearbox to provide super power,
aggravated the smooth and high reliability of the dedicated bridge walking
2-Combine the excavator and the loader into one, and one
machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
3-Mining, loading function all lead control, light and flexible, high operating efficiency.
4.-Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
5-Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
6-The design of the front flip cover greatly improves the maintenance of the entire machine.
7-A variety of accessories can be selected to complete a
variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water,
power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying,
landscaping and other operations
Product Description
Specification
Main specifications:

Overall Operating Weight	8200kg
Loader Bucket Capacity	1.0m3
Rated Load Weight	2500KG
Backhoe Capacity	0.3 m3
L*W*H(mm)	6230×2365×3752
Wheel base	2200mm
Min. Ground Clearance	300mm
Breakout Force	38KN
Bucket Dumping Height	2650mm
Bucket Dumping Distance	1025mm
Digging Depth	52mm
Max. Digging Depth	4085mm
Swing Angle of Excavator Grab	190°
Max. Pulling Force	39KN
Engine
Model	Cummins engine//Yuchai YC4A105Z-T20//
Type	turbocharging four-stroke
Cylinder-Inside Diameter*Stroke	4-105
Rated Power	74KW/100HP
Rated Speed	2400r/min
Min. Fuel Consumption	235g/kw.h
Max.Torque	310NM
Displacement	4.3L
Transmission Gearbox
Type	Fixed Shaft Power Transmission
Oil Pressure of Clutch	1373Kpa-1569 Kpa
Gears	Two Gears Ahead, Two Gears Astern
Max.Speed	22Km/h
Steering System
Model of Steering Device	BZZ5-250
Steering Angle	±36 o
Min. turning radius	6581mm
Pressure of the system	12Mpa
Hydraulic System
Digging Power of Excavator Grab	46.5KN
Digging Power of Dipper	31KN
Bucket Lifting Time	5.4S
Bucket Lowering Time	3.1S
Bucket Discharge Time	2.0S
Brake System
Service Brake	Air Over Oil Caliper Brake
	External Type
	Self-regulation
	Self-balance
Emergency Brake	Operation Power Implementing brake
	Manual Operation Power Terminating Brake
Axle
Manufacturer	Feicheng Axle Factory
Main Transmission Type	Double Reduction
Final Reducer	Single Stage Final Reducer
Tyre
Model	14-17.5/19.5L-24
Pressure of Front wheel	0.22 Mpa
Pressure of Back Wheel	0.22 Mpa
Optionals:
Cummins 74kw engine
Air conditioner	Waranty:12months
Pallet fork	Delivery time:25days
4in1 bucket	Package: 1unit in 40feet container
Break hammer	2units in 40feet container is also OK
Loader quick hitch
Excavator quick hitch
Pre-pipe for break hammer
Wood/grass gripper

Product Features
The engine adopts environmental-friendly YC4A105Z-T20 Stage Ⅱ engine Ⅱ ,(Cummins QSB3.9-C100-31 EU Stage Ⅲ or Stage V can be option )featuring strong power, reliable performance, and high efficiency and energy-saving.
It’s equipped Shaft Powershift / Electric control, featuring good power matching, stable motion, and more powerful operations. The structures ease the repairs and maintenances.It suitable for diversified severe industrial and mining conditions and realizes faster movement.
The pipelines are arranged smoothly and the oil tank layout is adjusted to improve the system reliability and maintainability.
The optimized 2,650mm dumping height, guarantees the excellent loading performance and ensures the carrying of higher torsional torque, featuring extensive loading/unloading scope and high efficiency. The automatic leveling function of the bucket and the 11.9 ± 0.15 s total cycle time, reduce the driver’s labor strength.
The optimized 2,200mm wheelbase guarantees outstanding site adaptability and flexibility and the operation stability to fulfill the loading and unloading operations with ease.
Multiple working devices are at your choice.
Application
Application for small and medium-sized gravel yards, mixing stations, small coal mines, farms, ranches, and urban construction and road construction.
Packing & Delivery
2 units of WZ30-25 backhoe loaders in one 20feet and one 40feet HQ container.
2 units of BLD776 backhoe loaders in one 40feet HQ container.
