New Type High Efficiency 1.7/2.1/2.4 M Tractor Pto Power Forage Cutter Lawn Cutter Disc Mower with Squeezing Rolls Hay Mower Lawn Tractor Mower

Product Description

Products Description

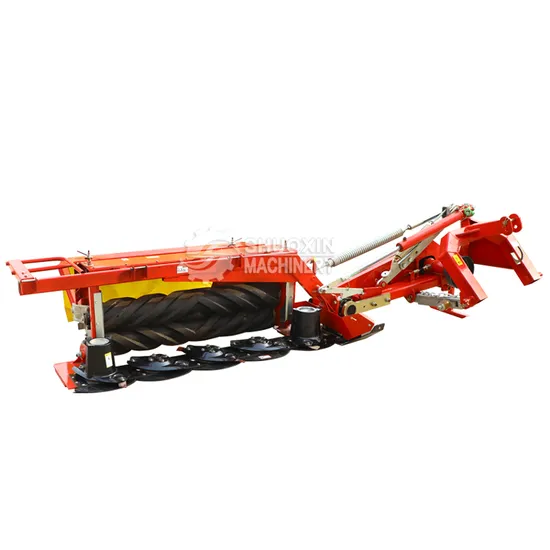

Disc Mower with crusher/ Squeeze Mower
Animal feed which is clean and rich in terms of energy is the main principle of a profitable stock breeding.
The compressed rollerss group equalizes drying time of the leaf and stem through squeezing out the sap of the crop with the help of helical rubber compressing system in order to help the cut crop wither and dry faster.

Through taking out crop's sap without wasting its nutritional value, the machine helps the crop to be collected from the field in a short time without dropping leaves.
Squeeze Disc Mower range consists of 5 discs and 6 discs. Cutting width covers 2.1/2.4 meters.
Width 2.1 Meters With 5 Discs

Width 2.4 Meters With 6 Discs

Details Images
Why choose an Squeeze Mower with crush roller conditioner? When using the crush roller , the hard stalks are squeezed through the rubber rolls and the delicate, nutrient-rich leaves are protected. In disc mowers, thanks to the rubber squeezing rollers, the cut grass is notched by crushing (without cutting). Thanks to these notches, the herb dries faster without losing its nutritional values.
The time for the farmer to go to the next process is reduced in this way.
Plants that yield more than one crop per season, such as alfalfa, can be moved to the next irrigation earlier, as the time to remove them from the ground is shortened.
Independent Shaft for the Crusher Rollers

Tight Connection between Rollers

Steel Roller Axle Centre Part

Thick Rubber Roller

3 point linkage mounted & PTO shaft
3 point linkage mounted for hanging and PTO shaft as power support
Heavy 4 belts drive systems & Steering shaft drive
used to power Disc Mowers avoids expensive maintence common to most mower types, and enables long periods of low cost operation.
Iron Belt protection cover
Iron with painting cover to protect the 4 belts
Manganese steel blade
High Strength stainless steel rust resistance knives
Product Paramenters

Model	9G-2.1	9G-2.4
Number of Disc	5	6
Knives/disc	2	2/3
Working Width(m)	2.1	2.4
Dimension(mm)	4200*1600*800	4600*1600*800
Weight(kg)	780	820
Hydraulic	Standard
Iron Cover	Standard
Crusher Rollers	Standard
Matched Power(HP)	60-90	100-140
working rate ha	1.6	2

Our Advantages
Advantages of Squeeze Mower

What does The Crusher offer over conventional conditioning rollers?

Full Contact the entire width

Fully conditioned stems - faster dry down

Less leaf loss - more nutrition

Excellent feed-ability into baler

Self cleaning design

Designed for maximum rubber

Trueness - no vibration

No clogging

Bolt on replacement for most models

Recommendations for Choosing the Right Mower
Field Size	For larger fields, a drum mower may be more efficient due to its wider cutting width.
Terrain	For rough terrain, the disc mower may be easier to maneuver and transport.
Vegetation	For heavier vegetation, the disc mower may be less prone to clogging and provide a cleaner cut.
Budget	For those on a budget, the drum mower may be a more cost-effective option.
Maintenance	For those with the time and resources for regular maintenance, the disc mower may provide greater longevity and durability.

Comparison of Drum Mower and Disc Mower
Cutting Mechanism	The drum mower uses horizontally mounted drums while the disc mower uses rotating discs perpendicular to the ground.
Weight	The drum mower is typically heavier than the disc mower, making it more difficult to maneuver and transport.
Clogging	The disc mower is less prone to clogging than the drum mower.
Cost	The disc mower is typically more expensive than the drum mower.
Maintenance	The disc mower requires more frequent maintenance and replacement of cutting discs and knives than the drum mower.

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.
