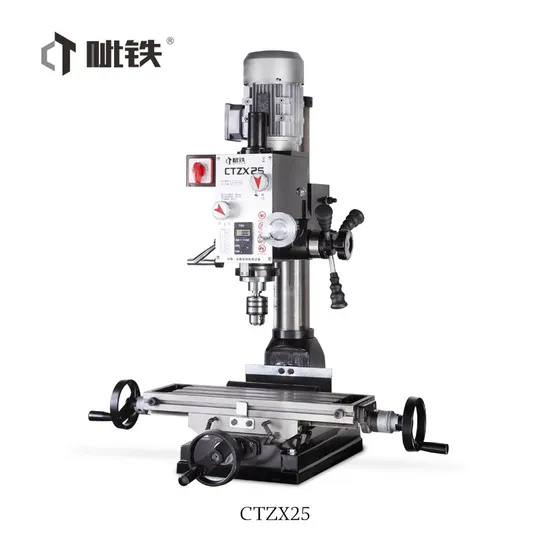

Vertical Dilling and Milling Machine for Metal Working Ctzx25
Basic Info.
Model NO.
CTZX25
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
760*400*1120mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max.Drilling capacity | 25mm |
| Max.milling capacity | 52mm |
| Max.vertical milling capacity | 16mm |
| Table size | 520X160mm |
| X spindle travel | 290mm |
| Y spindle travel | 140mm |
| Spindle taper | MT3 |
| Spindle travel | 85mm |
| Distance from spindle to column guide rail | 203 |
| Distance from spindle end to table surface | 445 |
| Spindle speed range/grade | 95~1420r/min |
| Motor Power | 750w |
| Net weight/gross weight | 132KG/150KG |
| Package Size | 680x680x1030mm |
