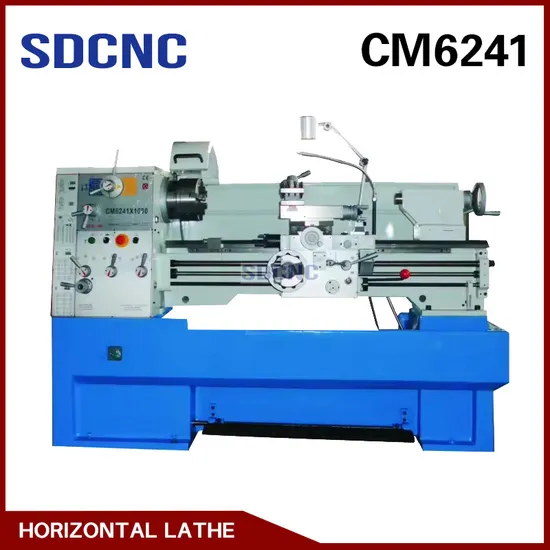

Cm6241 High-Quality Engine Lathe Spindle Bore Manual Lathe Machine for Metal
| US$4,900.00-5,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CM6241
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Heavy Duty Lathe Machine
CNC or Not
Nomal
Core Components
Bearing, Gear, Motor
Name
Small Lathe
Transport Package
Wood Packing
Specification
2575*926*1635
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2575.00cm * 926.00cm * 1625.00cm
Package Gross Weight
1565.000kg
Product Description
Standard accessories:
52mm spindle bore 200mm 3-jaw self centering chuck 250mm 4-jaw independent chuck face plate 350mm 4-position electric toolpost manual tailstock change gears steady rest & follow rest monoblock cast iron base work light, coolant system foot brake system reduction sleeve, dead center thread dial indicator
Product Parameters
| technical parameter | Specification | Models | |
| CM6241×1000/1500 | CM6241V×1000/1500 | ||
| Processing range | Capacity | ||
| Maximum workpiece turning diameter on the bed | Swing over bed | 410mm(16") | |
| Maximum workpiece turning diameter on the carriage | Swing over cross slide | 255mm(10") | |
| Maximum turning diameter in the saddle groove | Swing in gap diameter | 580mm(23") | |
| Active length of the saddle in front of the faceplate | Length of gap | 190mm(7-1/2") | |
| Two top center distance | Admits between | 1000mm(40")/1500mm(60″) | |
| Spindle center height | Center height | 205(8″) | |
| Bed width | Width of bed | 250(10") | |
| Spindle | HEADSTOCK | ||
| Spindle end | Spindle nose | D1-6 | |
| Spindle through hole diameter | Spindle bore | 52mm(2") | |
| Spindle bore taper | Taper of spindle bore | No.6Morse | |
| Spindle speed range | Range of spindle speed | 16 changes 45-1800r/min | 30-550r/min or 550-3000r/min |
| Feed and thread | FEEDS AND THREADS | ||
| Small pallet maximum longitudinal stroke | Compound rest travel | 140mm(5-1/2") | |
| Middle carriage maximum lateral travel | Cross slide travel | 210mm(8-1/4") | |
| Large screw specifications | Lead screw thread | 4T.P.I. | |
| The maximum size of the cutter bar (width × height) | Max.Section of tool (W×H) | 20×20mm(13/16") | |
| Longitudinal feed range | Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) | |
| Horizontal feed range | Cross feeds range | 0.025-0.85mm(0.001"-0.0335"/rev) | |
| Metric thread range | Threads metric pitches | 39kinds 0.2-14mm | |
| Inch thread range | Threads imperial pitches | 45kinds 2-72T.P.I | |
| Diameter thread specification | Threads diametral pitches | 21kinds 8-44D.P. | |
| Modular thread specification | Threads module pitches | 18kinds 0.3-3.5M.P. | |
| Tailstock | TAILSTOCK | ||
| Tailstock sleeve diameter | Quill diameter | 50mm(2") | |
| Tailstock sleeve stroke | Quill travel | 120mm(4-3/4") | |
| Tail sleeve inner hole taper | Quill taper | No.4 Morse | |
| Lateral adjustment | Cross adjustment | ±13mm(±1/2") | |
| Motor | MOTOR | ||
| main motor power | Main motor power | 2.2/3.3kW(3/4.5HP)3PH | |
| Cooling pump power | Coolant pump power | 0.1KW(1/8HP),3PH | |
| Dimensions and weight | DIMENSION AND WEIGHT | ||
| Dimensions (length × width × height) | Overall dimension(L×W×H) | 194×85×132cm/244×85×132cm | |
| Box size (length × width × height) | Packing size(L×W×H) | 206×90×164cm/256×90×164cm | |
| Net weight / gross weight | Net weight/Gross weight | 1160kg/1350kg 1340 kg /1565 kg | |
