Air-Damping Automatic Level Surveying Instrument
| US$50.00-80.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DSC1
Vertical Lines
1
Type
Magnetic
Erect
Objective Aperture
40mm
Min. Focusing Distance
0.3m
Field of View
1°20"
Waterproof Grad
Ipx4
Weight
1.81kgs
Connector
M16 or 5/8"
Warranty
1 Year
Transport Package
Individual Package
Trademark
No
Origin
Jiangxi
HS Code
9015800090
Production Capacity
10, 000PCS/Year
Packaging & Delivery
Package Size
120.00cm * 40.00cm * 40.00cm
Package Gross Weight
5.000kg
Product Description

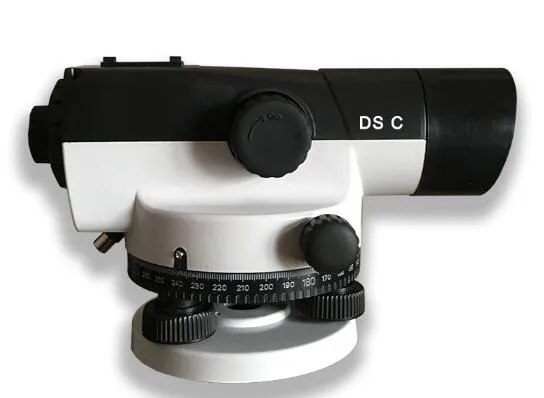

Magnetic Auto Level
* Magnetic damping compesator with heavy pendulum
* Super stable damping effect and high precision
* Large roof prism, super clear imaging
* Integrated metal top with handle, easy to carry
| Models and technical parameters | HXO-32X XL | ||||||
| Compensation type | Magnetic | ||||||
| Magnification | 20X | 22X | 24X | 26X | 28X | 30X | 32X |
| Standard Deviation for 1km Double-run Leveling | 2.5mm | 2.0mm | 2.0mm | 1.5mm | 1.5mm | 1.5mm | 1.0mm |
| Objective aperture | 36mm | 36mm | 36mm | 40mm | 40mm | 40mm | 40mm |
| Field of view | 1°20' | ||||||
| shortest sighting distance | 0.3m | ||||||
| Accuracy of Circular Level | ±0.8'' | ±0.8'' | ±0.8'' | ±0.5'' | ±0.5'' | ±0.5'' | ±;0.3'' |
| Compensation working range | ±15' | ||||||
| Telescope | Erect | ||||||
| bubble accuracy | 8'/2mm | ||||||
| Stadia Multiplication | 100 | ||||||
| Addition constants | 0 | ||||||
| Horizontal Circle | 1° or 1 gon | ||||||
| Weight | 1.81kg | ||||||
| Waterproof grade | IPX4 | ||||||
| Connector | M16 or 5/8'' | ||||||
