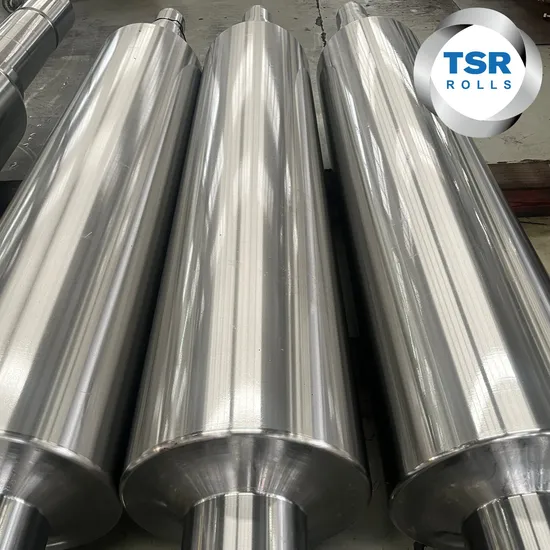

Customized Forged Rolls, Work/Intermediate/Backup Roll for Cold Mills (2%Cr, 3%Cr, 5%Cr)

Product Description

Product Description
PRODUCTS
6-High HC Mill Work Rolls
6-High HC Mill Intermediate Rolls
Tandem Cold Mill Rolls
Non-Ferrous Cold Mill Work Rolls
Roll Shafts
Backup Rolls
Aluminum Foil Mill Backup Rolls
Wide Aluminum Plate Mill Work Rolls
High-Precision Aluminum Foil Mill Work Rolls
Sendzimir Rolls
APPLICATION RANGE

Material	Hardness (HSD)	Cold Mill		Non-ferrous Strip & Foil Mill Work Rolls	Back-up Rolls	Multi-roll Mill		Hot Mill Work Rolls	Roll Shafts	Table Roller	Rolls for Battery Pole Flake
		Work Roll	Intermediate Roll			Work Roll	Intermediate Roll
2%Cr	95-105			O
	90-98	O				O					O
3%Cr	85-95	O				O
	75-85		O				O
5%Cr	50-80				O
	50-60							O
Cold Working Die Steel	75-95	O				O
	75-85						O
Hot Working Die Steel	75-85						O
	60-75							O
HSS	85-95	O				O
	75-85							O
Semi-HSS	85-95	O				O
	75-85		O				O	O
Alloy Structure Steel	40-55								O	O

CHEMICAL COMPOSITION OF THE COLD MILL WR, IMR, BUR

Roll Type	Grade	Material	Chemical Composition
			C	Si	Mn	Cr	Ni	Mo	V	P	S
WR & IMR	2%Cr Series	9Cr2Mo	0.80-0.95	0.25-0.45	0.2-0.4	1.7-2.1	<0.25	0.2-0.4	/	≤0.02	≤0.015
		86CrMoV7	0.80-0.95	0.25-0.45	0.2-0.4	1.7-2.1	<0.25	0.2-0.4	0.1	≤0.02	≤0.015
	3%Cr Series	9Cr3Mo	0.75-0.95	0.25-0.45	0.2-0.55	2.5-3.5	/	0.2-0.3	/	≤0.02	≤0.015
		MC3	0.75-0.95	0.2-0.9	0.2-0.6	2.5-3.2	0.2-0.8	0.2-0.6	<0.25	≤0.02	≤0.015
BUR		YB-50	0.4-0.65	0.2-0.6	0.4-0.85	2.0-3.0	0.2-0.8	0.3-0.7	0.05-0.15	≤0.02	≤0.015
WR & IMR	5%Cr Series	MC5	0.7-0.95	0.2-0.9	0.2-0.6	4.5-5.4	0.1-0.8	0.1-0.6	<0.25	≤0.02	≤0.015
BUR		YB-70	0.4-0.85	0.3-0.7	0.4-0.80	4.5-5.5	0.2-0.8	0.3-0.8	0.05-0.2	≤0.02	≤0.015

THE PROPERTY OF THE COLD MILL WR, IMR, BUR

Grade	Material	Mill	Roll Type	Specification
2%Cr	86CrMoV7	Single stand mill	WR	Depth12~20mm
	9Cr2Mo	Single stand mil	WR,IMR	Hardness Depth 10~15mm
3%Cr	MC3A	Single stand mill tandem mill	WR,IMR,	Ultra-deep Hardness Depth>25mm
	MC3	skin pass mill	WR	Hardness Depth >20 anti-roll mark
	YB-50	Single stand mill tandem mill	BUR	Hardness Depth 20~60mm
5%Cr	MC5	Single stand mill tandem mill	WR	Ultra-deep Hardness Depth ≥40mm
	MC5(A-H)	Single stand mill tandem mill	WR	high wear resistance. rollmark/uniformity
	YB-70	Single stand mill tandem mill	BUR	Hardness Depth50-100mm

CHEMICAL COMPOSITION OF THE CLUSTER MILL ROLLS

Roll Type	Material	Chemical Composition % Wt
		C	Si	Mn	P	S	Cr	Mo	W	V	Co
WR	Cr12MoVCo	1.40- 1.6	≤ 0.6	≤ 0.6	≤ 0.025	≤ 0.015	11.00- 13	0.80- 1.2	-	0.70- 1	0.35- 0.5
	Cr12Mo1V1 (D2/ SKD11)	1.45- 1.65	≤ 0.4	≤ 0.6	≤ 0.025	≤ 0.015	11.00- 13	0.70- 1.1	-	0.7 1.1	-
	W6Mo5Cr4V2 (M2)	0.80- 0.9	0.20- 0.45	0.15- 0.4		≤ 0.015	3.80- 4.4	4.50- 5.5	5.50- 6.75	1.75- 2.2	-
	8%Cr	1	0.7	0.5	≤ 0.025		8	2		1.2-1.5
IMR	4Cr5WMoSiV (H12/SKD62)	0.38- 0.45	0.80- 1.2	0.20- 0.5	≤ 0.025	≤ 0.015	4.80- 5.5	1.00- 1.5	1.00- 1.5	0.30- 0.6	-
	X63CrMoV51	0.60- 0.65	0.80- 1.2	0.30- 0.5	≤ 0.030	≤ 0.020	5.00- 5.5	1.00- 1.3	-	0.25- 0.35	-
	5H12	0.48- 0.55	0.80- 1.2	0.20- 0.5	≤ 0.025	≤ 0.015	4.80- 5.5	1.00- 1.5	1.00- 1.5	0.30- 0.6	-
	SHSS	0.72- 0.8	0.80- 1.05	0.25- 0.45	≤ 0.02	≤ 0.015	4.80- 5.2	1.00- 1.2	-	0.40- 0.6	-

THE PROPERTIES OF CLUSTER MILL ROLLS

Roll Type	Material Series	Material	Performance Characteristics	Barrel Hardness	Apply to	Hardness Depth
WR	12%Cr	Cr12Mo1V1Co	High wear resistance, resistance to accident	62-64	Stainless steel, silicon steel	Whole diameter hardening/surface quenching
		Cr12Mo1V1(D2)	The better wear resistance	61-63	Stainless steel
IMR	Hot mould steel series	H13	High basis resistance	58-60	Stainless steel
		5H12	The better wear resistance	58-60	Stainless steel, silicon steel

Detailed Photos

About TSR
OUR COMPANY
TSR is an integral company capable of supplying all types of rolling mill rolls as well as technical assistance services to our customers in order to improve the operation of the rolling mills.
TSR has a team of experts composed of Doctors and Engineers with long experience in Metallurgy and Rolling. Our goal is to supply the best rolls at the best price, allowing our customers to improve their quality and TCO.

R&D
Only companies that actively invest in R&D in order to meet the needs of their customers can survive in an increasingly competitive market. TSR is always listening to the needs of our customers, actively pioneering innovation with high quality products to satisfy our customers' demands.
Our company has passed ISO 9001: 2008 quality system certification and ISO 14001: 2004 environment mental system certification. Many of our products have won the national patents, and have been assessed as a high-tech enterprise in JIANGSU province.
HEAT TREATMENT
During the roll manufacturing, many materials require to go through one or more Heat Treatment cycles to reach the most appropriate mechanical conditions and the best microstructure. The resistance furnace used by TSR can realize a multi-point accurate temperature control and ensure the stability of temperature in the furnace. The conditions of heating and cooling environment in different furnaces are all controlled by computers, to make sure that the rolls processed by different furnaces have the same structure and properties.

MACHINING
CNC Lathes, CNC Grinders and a series of automatic processing equipment are operated and inspected by skilled staff who engaged in roll manufacturing for years, which means they can calmly deal with the strict accuracy and tolerance requirements.

QUALITY ASSURANCE
Our Company keeps every step of the roll manufacturing under strict supervision, from heat treatment to machining. We are pleased to say that we realize the continuous quality control of the whole process. The data of all kinds of inspection instruments is collected directly by computer, which provides a modern means and a more efficient way for the quality controlling process.

INSPECTION	BLANK	ROUGH MACHINING	QUENCHING	HEAT TREATMENT	FINISH MACHINING
Hardness			O	O	O
Dimensional	O	O			O
Chemical	O
Temperature			O	O
Micro				O
Weight	O				O
Ultrasonic	O	O		O	O
Surface UT					O
Tensile				O
Time			O	O

Service & Support
At TSR Roll, we are focused on the roll service. Our Technical Service will help you to solve questions about roll maintenance, roll wear, roll damages, roll configuration, shape of the roll, surface hardness, roughness, temperature distribution and damage inspection among others. The aim is reducing the Total Cost of Operation for the customer by supplying reliable rolls and advanced roll service always with strict adherence to the delivery time.For more information about TSR, please visit our website: tsroll.en.made-in-china.com
