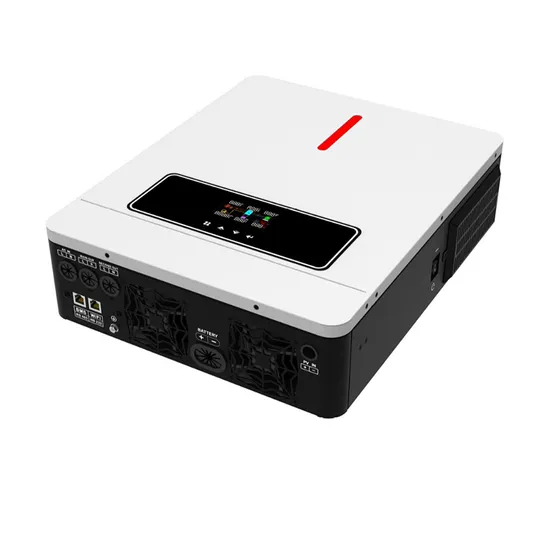

Solar Hybrid Inverter 3kVA 3kw MPPT Hybrid Solar Inverter with Batteries Charger
Basic Info.
Model NO.
CY-solar inverter-2503013L
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
8200W/10200W
Certification
CE, ISO
Brand
C-Trying
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Model No.
8200W/10200W
Frequency Range
50Hz/60Hz (Auto Sensing)
Efficiency (DC to AC)
94%
Maximum Solar Charging Current
160A
Transport Package
Foam + Carton
Specification
500mm*390mm*130mm
Trademark
C-Trying
Origin
China
HS Code
850440309
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
62.00cm * 47.00cm * 21.00cm
Package Gross Weight
18.000kg
Product Description
8200w 10200w Solar Hybrid InverterProduct Parameters
| Model | AGH-8.2KW-Plus | AGH-10.2KW-Plus | |||||||
| Phase | 1-Phase | ||||||||
| Maximum PV Input Power | 8200W | 5400W+5400W | 10200W | 5400W+5400W | |||||
| Rated Output Power | 8200W/8200VA | 10200W/10200VA | |||||||
| Maximum Solar Charging Current | 160A | ||||||||
| GRID-TIE OPERATION | |||||||||
| PV Input(DC) | |||||||||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||||||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||||||
| MPPT Voltage Range | 90VDC~450VDC | ||||||||
| Number of MPPT/Max Input Current | 1/23A | 2/18A | 1/23A | 2/18A | |||||
| GRID OUTPUT(AC) | |||||||||
| Norminal Output Voltage | 220/230/240VAC | ||||||||
| Output Valtage Range | 195~253VAC | ||||||||
| Norminal Output Current | 35.6A | 44.3A | |||||||
| Power Factor | >0.99 | ||||||||
| EFFICIENCY | |||||||||
| Max Conversion Efficiency(DC/AC) | 98% | ||||||||
| TWO LOAD OUTPUT POWER | |||||||||
| Full Load | 8200W | 10200W | |||||||
| Maximum Main Load | 8200W | 10200W | |||||||
| Max Second Load(battery mode) | 2733W | 3400W | |||||||
| Main Load Cut Off Voltage | 52VDC | ||||||||
| Main Load Return Voltage | 54VDC | ||||||||
| OFF-GRID OPERATION | |||||||||
| AC Input | |||||||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||||||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||||||
| Frequency Range | 49~51±1HZ | ||||||||
| Maximum AC Input Current | 40A | 50A | |||||||
| Nominal operating frequency | 50/60Hz | ||||||||
| Surge power | 16400W | 20400W | |||||||
| PV INPUT(DC) | |||||||||
| Maximum DC Voltage | 360/500VDC | ||||||||
| MPPT Voltage Range | 90VDC~450VDC | ||||||||
| Numben of MPPT/Max Input Current | 1/23A | 2/18A | 1/23A | 2/18A | |||||
| BATTERY MODE OUTPUT(AC) | |||||||||
| Nominal Output Voltage | 220/230/240VAC | ||||||||
| Output Waveform | Pure sine wave | ||||||||
| Efficiency(DC to AC) | 94% | ||||||||
| BATTERY&CHARGER | |||||||||
| Nominal DC Voltage | 48VDC | ||||||||
| Maximum Solar Charging Current | 160A | ||||||||
| Maximum AC Charging Current | 140A | ||||||||
| PHYSICAL | |||||||||
| Dimension,D*W*H(mm) | 500*390*130 | ||||||||
| Carton Dimension,D*W*H(mm) | 618*463*205 | ||||||||
| Net Weight(Kg) | 14.2 | 14.7 | |||||||
| Gross Weight(Kgs) | 15.7 | 16.2 | |||||||
| INTERFACE | |||||||||
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | ||||||||
| ENVIRONMENT | |||||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||||||
| Operating Temperature | -10ºC~50ºC | ||||||||
