Double Spindle Swiss-Type CNC Precision Automatic Lathe Tc385

Product Description

Double spindle Swiss-type CNC precision automatic lathe TC385
Product Features:
Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.
Built in electric spindle,hydraulic clamping,ensure high precision machining.
Main spindle clamping is compatible with two clamping forms: forward push and backward pul, no need for large diameter grinding materials.
The primary processing length of the main spindle with guide bush is 320mm.
Main spindle side miling adopts ER25+ER20 with 23 high-power motors, combined with the spindle hydraulic brake, to improve miling eficiengyand rigidity.
Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, andachieve fast tool change speed.
Characteristic :

Model No.			TC385-1	TC385-2
Item No.			5 axis ,double spindle	5 axis ,double spindle
Specifications
NC system			SYNTEC 220TB	SYNTEC 220TB
Lathe rated power			25 kw	25 kw
Machining range
Maximum machining diameter			Ø38 mm	Ø38 mm
Maximum machining length (one-time clamping)With guide bush			320 mm	320 mm
Maximum machining length (one-timeclamping)Non guide bush			85 mm	85 mm
Main spindle power			10 kw	10 kw
Sub spindle power			10 kw	10 kw
Main spindle max through hole dia			Ø42 mm	Ø42 mm
Main/sub spindle rev speed			6000 rpm	6000 rpm
Sub spindle max clamping dia			Ø38 mm	Ø38 mm
Sub spindle max through hole dia			Ø42 mm	Ø42 mm
Max tool installed qty			25	25
Main spindle tool
OD Turning tool	Qty x Model		6x16 mm+3x20 mm	6x16 mm+3x20 mm
Side-Live tool	Qty x Model		3xER20+1xER25	3xER20+1xER25
	Drilling dia		Ø16 mm	Ø16 mm
	Tapping/Threading die dia		M8	M8
	Live tool rev speed		5000 rpm	5000 rpm
	Live tool power		2.3 kw	2.3 kw
End face fixed tool	Qty x Model		7xER20	7xER20
	Drilling dia		Ø13 mm	Ø13 mm
	Tapping/Threading die dia		M10	M10
Angular drilling head			-	-
Axial drilling and milling tool			-	-
Sub spingdle tool
End face fixed tool		Qty x Model	5 x ER25	3x ER25
		Drilling dia	Ø16 mm	Ø16 mm
		Tapping/Threading die dia	M10	M10
Axial drilling and milling tool			-	2 x ER16
Rapid feed speed			18(X1) 24(X2/Y1/Z1/Z2) m/min	18(X1) 24(X2/Y1/Z1/Z2) m/min
Feed motor power			1.7 kw	1.7 kw
The power capacity			25 kva	25 kva
Air pressure device			0.6 mpa	0.6 mpa
Weight			4800 kg	4800 kg
Dimensions(LxWxH)			3000x1450x2200 mm	3000x1450x2200 mm

Standard configuration	Optional configuration
Short workpiece collector	Angular drilling head
Workpiece belt conveyor	Long workpiece collector
Synchronal rotary guide bush device	High pressure pump
Main spindle cross 4 axis live tool	Oil mist collector
Cut off tool breakage detector	Chip conveyor
Non guide bush	Axial drilling and milling tool

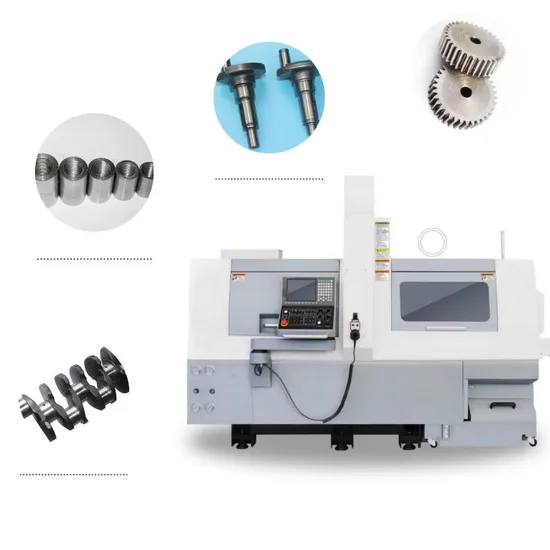

PRODUCT IMAGE:
