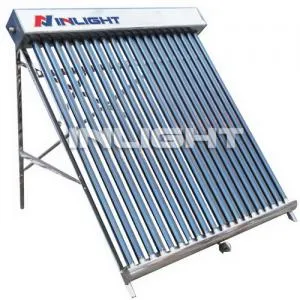

Stainless Steel Non Pressure Glass Tube Solar Collector

Product Description

Stainless Steel Non Pressure Glass Tube Solar Collector Specifications:

Vacuum tube	Size (mm)	Φ47×1500 Φ58×1800
	Tube (pcs)	15/ 20 / 25 / 30 / 36
	Material	Borosilicate glass, magnetron spluttering coating
	Coating	AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Manifold	Dimension	180*160mm, 1" male thread inlet & outlet
	Inner tank	Food-grade SUS304-2B stainless steel
	Tank shell	Stainless steel SUS304-BA
	Insulation	Imported polyurethane integrated foam-forming
Bracket	Stainless square tube steel 30*30*3mm
Accessories	Stainless bolts & nuts, waterproof silicon rubber seal,dustproof rubber seal, plastic pipe holder
Tilt angle	20°~ 90° (Vertical/ horizontal shift: -5°/-5°)
Hail resistance	Φ25mm diameter

Description:
Solar Collector(One-wing Type) Features description:
Stainless Steel All Glass-tube Solar Collector(One-wing Type) consists of glass vacuum tube, non-pressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.

1. Inner of manifold: Food-grade stainless steel SUS304-2B 0.4mm
2. Exterior Shell: Stainless steel 304 0.4mm
3. Insulation: High density polyurethane foam layer 40 mm
4. Manifold Inlet & Outlet: Food-grade stainless steel, 1 inch male threaded
5. Vacuum Tube: Borosilicate glass vacuum tube, Cu-SS-ALN/AIN coating
6. Bracket: Stainless steel 201 1.2mm
7. Accessories: Stainless fasteners, anti-aging silicon rubber seal & dustproof rubber seal
8. Collector Installation Angle: 20°~80°(ensure optimum vacuum tube operation)
9. Hail Resistance: < Φ30 mm


Applications:
Domestic hot water for shower, washing. Solar Thermal, Project: such as School, Hospital, Hotel.




Competitive Advantage:
1. It is the most economical solar collector which is widely used in large-scale hot water heating system, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools, and other places requiring large amount hot water application.
2. Special design with all rights reserved by INLIGHT, the arc-angle manifold makes the manifold with much more stress to strike and expansion.
3. INLIGHT glass tube collector can be connected in series-parallel arrays and used in active or passive solar water heating system with stable and reliable performance.
4. INLIGHT glass tube and manifold is anti-freezing device, the collector can be used in extremely cold area with anti-freezing system design and pipeline insulation.
5. High absorption: αs ≥ 90%, low-emissivity: εh ≤ 8%, daily average thermal efficiency ηd ≥ 50%
6. INLIGHT modularized design makes the collector more adaptable to different architecture structure and locations.
