1/2 - 4 Inch 12 Brass Ball Valves for Oil & Gas for European

Product Description

Features at a glance

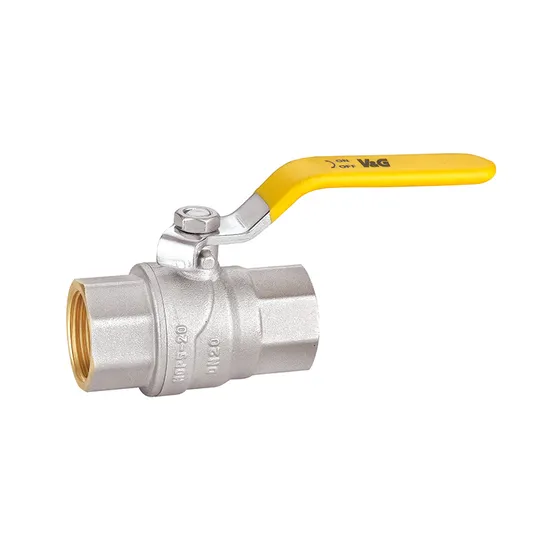

DVGW GAS BALL VALVE, FULL FLOW, FEMALE-FEMALEGas ball valve suitable for installation in family and industry gas system.Product overview
Size: 1/4"~4"CE Approved, DVGW approved, EN331 standard, full flowFemale/female threads.Lever handle in steel.Body in nickel-plated brass.Working temperatures: -20°C, 60°C.Working pressure:MOP5 Threads Type :
Female threads:
- ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1)
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)

No	Item	Data
1	Supply capacity	1000000 pcs/month
2	Minimum order	500 pieces
3	Conventional packing	in the box/carton or as each customer required
4	Application	Gas ball valve suitable for installation in family and industry gas system.

SIZE	CODE	A	C	L	H
1/4"(DN8)	VG10.61011.08	89	10	45.5	38
3/8"(DN10)	VG10.61011.10	89	12	55.8	38.5
1/2"(DN15)	VG10.61011.15	89	15	58	42
3/4"(DN20)	VG10.61011.20	89	20	67	46
1"(DN25)	VG10.61011.25	112	25	80.8	60
1.1/4"(DN32)	VG10.61011.32	131	30.5	94.5	69.5
1.1/2"(DN40)	VG10.61011.40	131	38.5	103	72
2"(DN50)	VG10.61011.50	159.5	47.5	126	83
2.1/2"(DN65)	VG10.61011.65	159.5	64	152.5	118
3"(DN80)	VG10.61011.80	245	75	170	128
4"(DN100)	VG10.61011.100	245	97	205	145

Company Profile
Zhejiang Valogin Technology Co., LTD founded in 1985, after years of development, we are now a leading manufacturing of brass valves, fittings and distribution manifolds for plumbing, gas and heating systems, for use in residential , industrial and commercial settings. We are committed to provide the world best one-stop solution for water, gas, oil and heating systems. With manufacturing ability from material to spare parts, Valogin has formed a vertical production supply chain which effectively improving the capacity, shortening the delivery time, and trying to gain our presence in the whole world.
120 million in turnover, of which more than 90% comes from international market, 7 buildings covering 64,000 sqm, 1100 employees and 30000 tons of brass processed per year.
MANUFACTURINGWith manufacturing ability from material to spare parts , valogin has formed a vertical production supply chain , effectivelyimproving the capacity and shortening the delivery time . Continuous quality control on raw material, production process and finished products.The lean production line not only saves labor costs, but also increases the productivity from 160 pcs to 450 pcs per 8 hours of each employee , and the first pass rate has been increased to 99% , the strong capability of " Scheduled and Qualified " provides excellent products and services to our customers all over the world.The lean production line not only saves labor costs, but also increases the productivity from 160 pcs to 450 pcs per 8 hours of each employee , and the first pass rate has been increased to 99% , the strong capability of " Scheduled and Qualified " provides excellent products and services to our customers all over the world.Valogin has 38 sets hot forging equipments with production capacity 28 Tons per day Valogin has realized 90% of core spare parts produced by ourselves in order to guarantee the quality and satisfy delivery time
Valogin has realized 80% automatic production of core spare components parts through continuous automatic production equipment, there is 5 sets automatic assembly line with production capacity 65,000 pcs per day . Valogin has realized 90% of core spare parts produced by ourselves in order to guarantee the quality and satisfy delivery time
Shipments
Certifications
FAQ
Q1: Can I have a sample order for valve?A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2:Do you have any MOQ limit for valve order?
A2: Low MOQ, 1pc for sample checking is available. Q3: How do you ship the goods and how long does it take to arrive?
A3: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. Q4:How to proceed an order for valve?
A4:
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production. Q5:Do you offer guarantee for the products?
A5: Yes, we offer 10 years warranty to our products.
