Phd4016 Model Widely Used CNC Drilling Machine for Steel

Product Description

High Speed CNC Drilling Machine for Plate model TPHD3016
1. Introduction:

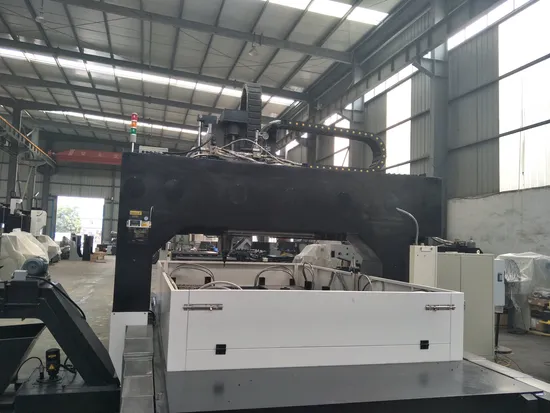

1.1 This machine aims to drilling holes on the metal plate of building steel structure, power iron tower and petrochemical equipments. It adopts gantry type structure. The axis X, Y and Z are drove by servo motor through precise ball guide screw. It positions automatically, precisely and quickly and finishes the processing of drilling automatically. Therefore, it highly improves the precision and speed. Meanwhile, it avoids repairing and scraping caused by manual position or drilling error.
1.2 The control system of this machine adopts host computer and PLC control system. The computer is installed with automatic programming software and machine monitoring software, which can convert the AUTOCAD graph file to processing program directly. It also very fast and easy, even programs it manually. The new operator without experiences of operating computer can program it in short time.
1.3 Automatic chip removal and circulation cooling system reduce the nonproductive time and labor intensity. The operator only need to load and unload work piece and change the drills.
1.4 The advanced CNC drilling power heads can automatically adjust to optimizing feeding speed and rotational speed through computer control according to different diameter of holes. This machine use Taiwan made BT50 spindle, inner cooling type, high accuracy spindle. It can use carbide drill. Machine also adopts pneumatic play knife cylinder, to make tool change more easier. The big power main spindle motor is driven by servo synchronization belt. Thus is can bear big scope of rotation speed.
1.5 This CNC drilling machine is designed according to the work piece features and precision requirements; it has compact form and is flexible, it meets the processing requirements better. No matter the holes are arranged as circle or straight line, it can finish the work quickly and accurately. Therefore, this machine is cost-effective choice.
Specifications:

Model	TPHD4016
Max work piece size (L×W)	4000x1600mm plate or Φ1600mm flange
Thickness of work piece	6--120mm
Drill unit type	sliding table, servo control
Drill head quantity	One and ATC (8 pics tools)
Spindle motor power	15KW
Max drill diameter	Φ40mm
Taper hole of spindle	BT40
Spindle speed	30~3000r/min
Spindle vertical stoke (Z axis)	300mm
Servo motor power of X axis	2.0 kW
Servo motor power of Y axis	1. 5 kW
Servo motor power of Z axis	2.0 kW
Motor power of scrap cleaner	0.75 kW
Clamping type	12 Hydraulic clams and T-slot
Electric control type	SIEMENS 808D
CNC axis quantity	3
Position precision	±0.08mm
With function of CAD/CAM automatic generation
With function of break point memory (Restart production easily after power off)
Overall size	About 6900x3900x3200mm
Weight	About 16t
