Good Performance Hydraulic Tapping Max Drilling Dia 32mm Radial Drilling Machine

Product Description

Product Description

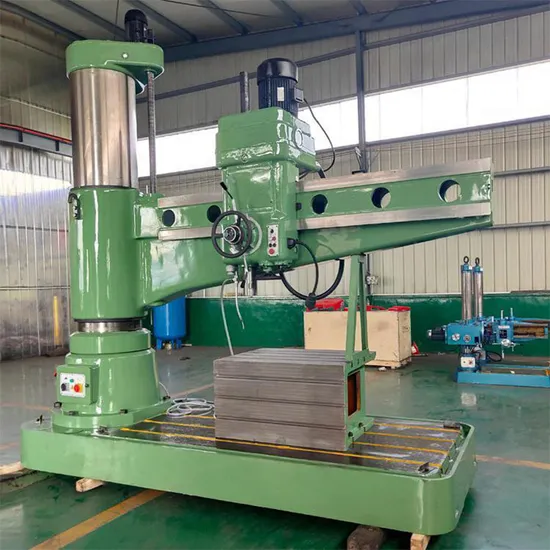

Radial Drilling Machine
The radial drilling machine is a hole processing equipment that can be used for various forms of processing such as drilling, reaming, tapping, and end face trimming. This radial drilling machine is easy to operate, flexible, has a wide range of applications, and is typical. It is especially suitable for hole processing of single-piece or batch production of large parts with porous parts. It is a common machine tool in general mechanical processing workshops.
Detailed Photos
Features:
(1) Suitable for drilling, reaming, countersinking, and tapping on medium and large metal parts.
(2) The rocker arm moves up and down along the outer column;
(3) The outer column drives the rocker arm to rotate ±180º around the inner column;
(4) The spindle box moves left and right along the rocker arm guide rail;
(5) Rocker arm lifting and clamping: The rocker arm lift is driven by the motor on the top of the column and driven by the screw nut to realize the rocker arm lifting. The lifting nut is equipped with a safety nut to ensure that the rocker arm cannot suddenly fall.
Product Parameters

Specification	Z3040*10(double column)	Z3040*13	Z3045*13	Z3050*16
Drilling diameter	Steel 35 / Casting 40 mm	Steel 35 / Casting 40 mm	Steel 40 / Casting 45 mm	Steel 48 / Casting 50 mm
Distance from spindle center to column	310-900 mm	320-1170 mm	320-1120 mm	360-1600 mm
Distance from spindle nose to table	170-1080 mm	300-1100 mm	235-1100 mm	350-1150 mm
Spindle travel	280 mm	200 mm	280 mm	220 mm
Spindle taper	MT. 4	MT. 4	MT. 4	MT. 5
Spindle speed step	12	12	12	6
Spindle speed range	34-1220 r/min	34-1220 r/min	22-1400 r/min	78 / 135 / 240 / 350 / 590 / 1100 r/min
Spindle lift speed	1.3 r/min	1.3 r/min	1.3 r/min	1.3 r/min
Rocker arm rotation angle	360±180°	360±180°	360±180°	360°
Spindle box travel	600 mm	850 mm	850 mm	1250 mm
Spindle feeding	0.10 / 0.16 / 0.25 mm/r	0.10 / 0.16 / 0.25 mm/r	0.10 / 0.16 / 0.25 mm/r	0.10 / 0.16 / 0.22 / 0.25 / 0.35 / 0.56 mm/r
The max. resistance of the spindle	6300 N	6300 N	6300 N	16000 N
Main motor power	1.5 / 2.2 kw	1.5 / 2.2 kw	3 kw	4 kw
Lift motor power	1.1 kw	1.1 kw	1.1 kw	1.5 kw
Weight	1150 kgs	1150 kgs	1450 kgs	2000 kgs
Size	1500*700*2200 mm	1850*800*2350 mm	1850*800*2350 mm	2170*950*2450 mm

Final Product Application
Packaging & Shipping
Package with Metal Base and plywood case, suitable for sea and other transportation!
