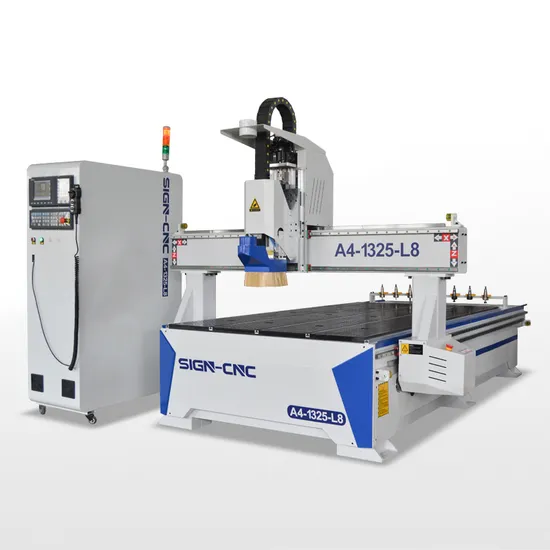

Woodworking Machine Plywood Cutting 1325 Atc CNC Router Machine for Wood Carving
| US$12,000.00-23,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
A4-1325-L8
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
220V/50Hz, or 380V
Woorking Area
1300*2500*300mm
Spindle Power
9.0kw
Guide Rails
Hiwin Square Guide Rails
Command Code
G Code
Control System
Syntec
Model of Driver
Leadshine
Z- Axis Height
300mm
Oil Lubrication System
Manual
Spindle
Air Cooling
Motor
Servo
Transport Package
Standard Export Wooden Box
Specification
17 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month
Product Description
Woodworking Machine Plywood Cutting 1325 Atc CNC Router Machine for Wood CarvingApplication:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:
| Model | A4-1325-L8 | A4-1530-L8 | A4-2030-L8 |
| Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm |
| Z feeding | 300mm | ||
| Frame structure | Steel casting-welding | ||
| Type of table cover | Vacuum table with T-slot | ||
| Vacuum pump | 5.5kW/7.5kw air cooling | ||
| Z axis transmission | Ball screw and 25 square guide rails | ||
| X Y axis transmission | TBI / Hiwin 25 square guide rails + rack | ||
| Max. Rapid Travel Rate | 33000mm/min | ||
| Max. Working Speed | 25000mm/min | ||
| Command Code | G code * .u00 * .mmg * .plt | ||
| Operating voltage | AC 380V/50Hz | ||
| Spindle power | 9.0 KW | ||
| Tool Magazine | 8 - 12 | ||
| Type of cooling | Air cooling | ||
| Spindle Speeds | 0-24000rpm/min | ||
| Drive motor type | Servo | ||
| operating system | Taiwan SYNTEC | ||
| Dust Collector | With | ||
| Lubrication system | With | ||
| Sensor for positioning the cutter | With | ||
| Supported software | Artcam software, Type3 software | ||
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | ||
| Warranty | One year | ||
Contain:
| NO. | Name | Features and use | Quantity |
| 1 | Frame of machine bed | Large steel tube welding | 1 set |
| 2 | Gantry | Heavy duty | 1 set |
| 3 | Spindle | 9kw HSD air cooling spindle | 1 pc |
| 4 | Inverter | 11kw Fuling | 1 pc |
| 5 | Motor | Panasonic servo motor | 4 sets |
| 6 | Driver | Panasonic servo driver | 4 sets |
| 7 | Syntec control card | 6MA | 1 set |
| 8 | Hand wheel | Operate for simple work | 1 pc |
| 9 | Control cabinet | Computer cabinet and electrical component installation | 1 pc |
| 10 | Guide rails | Hiwin 25 square guide rails | 1 set |
| 11 | Rack gear | Helical rack and gear | 1 set |
| 12 | Working table | Vacuum table with T-slot | 1 set |
| 13 | Vacuum pump | Suction the air between the material and the table to be a vacuum to fix the material. | 1 pc |
| 14 | Positioning pneumatic cylinder | To fix the plate faster and more accurately, improving work efficiency | 1 pc |
| 15 | Auto oil lubrication system | Lubrication the rails and rack gear | 1 pc |
| 16 | Dust collector | 3kw double bags | 1 pc |
| 17 | Tool sensor | Adjust the distance from the tool to the materials | 1 pc |
| 18 | Tool Magazine | Place of put the cutter with 8 position | 1 set |
| 19 | Collets | Hold the bit on the spindle | 8 pcs |
| 20 | Materials holder | Fixing material when engraving | 8 set |
| 21 | Cutter | Used for engraving and cutting | 2 box |
| 22 | Connecting cables | Data Cable, Power Cable, etc. | 1 set |
| 23 | Wrench | Used for change the cutter or routine maintenance | 2 pcs |
| 24 | L-type screwdriver | Used for L-type screwdriver | 1 set |
| 25 | Tool box | Loading tools and some gadgets | 1 pc |
Option:
Samples
Payment methods:
| MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 15 working days after receiving payment |
| Payment methods | T/T in advance, 50% deposit, the balance should be paid before shipping |
Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
