Manufacture High Precision Steel Sheet Surface Machining Horizontal CNC Lathe Duplex Milling Machine

Product Description

The best choice of surface milling machine for 110-700mm square workpieces.

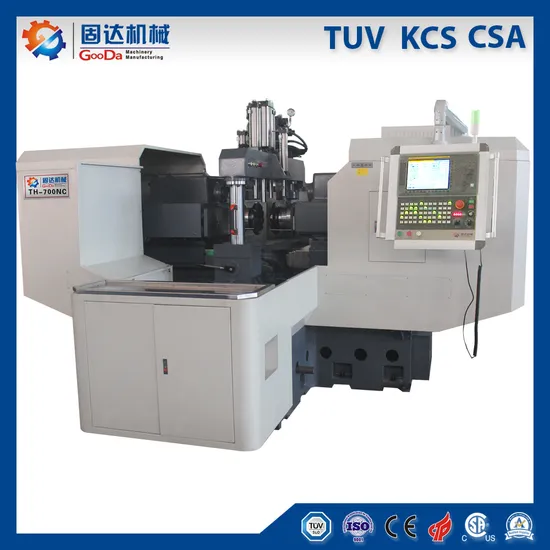

CNC twin head milling machine TH-700NC
Optional spindle driving by Gear type
Cutting range: Belt type : (110-700)*(110-700)*245(Opt 295)mm
Max. Cutting capacity: 2x1.5mm
Milling accuracy:Squareness tolerance≤0.015mm/300mm,accuracy tolerance range+/-0.01mm,roughness≤1.6um,parallelism≤0.015/300mm²
Machine base with rigid, one-piece iron construction
Powerful vertical hydraulic clamping with one main cylinder
According to the following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity Features

TH-700NC	[Items]	[Unit]	TH-700NC
[Cutting capacity]	[Width*Length of workpiece]	mm	110-700
	[MAX.thickness of workpiece]	mm	245(OP295)
[Travel]	[X axis]	mm	300
	[Y axis]	mm	300
	[Z axis]	mm	1000
[Feed]	[Rapid feed speed X axis]	mm/min	8000
	[Rapid feed speed Y axis]	mm/min	8000
	[Rapid feed speed Z axis]	mm/min	8000
[Spindle]	[Cutter diameter]	mm	250(OP 300)
	[Spindle speed]	rpm	50-500
	[Spindle taper]		NT50
[Power]	[Spindle motor]	KW	2x9
	[X servo motor]	KW	2.5
	[Y servo motor]	KW	2.5
	[Z servo motor]	KW	3
[Worktable]	[Dimensions]	mm	500*500
	[Max loading Weight]	kg	1200
[Others]	[machine weight]	kg	11000
	Space	m2	3.9x3.9

Productivity configuration

ITEM	SPECIFICATIONS	QUANTITY
Main	CNC Twin head milling machine NC Controller FANUC system Model: TH-700NC	1 set
Standard configuration	1. Servo motor rotary worktable 2. Screw type automatic chip conveyor 3. Tools and tools car 4. Closed house sheet metal 5. Full set of cushion/clamp 6. Workpiece automatic measuring 7. 90˚Workpiece positioning device 8. Air pressure system, blowing, and automatic measurement 9. Three colors working light 10. Working status indicator light 11. Air cooling system electric box 12. single vertical hydraulic cylinder clamping 13. Man-machine conversation system, automatic protection, diagnosis, display	1 set 2 sets 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set
Accessories	1. Face cutter 250mm (R&L) 2. Transformer (380V to 220V) 3. Scrap car	2 sets 1 set 1 set

Productivity benefits
GooDa CNC twin head milling machines offer the following benefits:
1. has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation, and other honors.
2. After-sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check the machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training. 5. Save you time and money and increase your productivity by milling your tools two sides at once.
6. Maximize tool life assuring your production will pay dividends for many years.
Don't worry and trust us, we will all here serve you! Company profiles
We are the manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, Exchange-Pallet Vertical CNC Milling Machine, CNC Gantry Grinding Machine,5-Axis High-Speed Gantry Machining Center, CNC High-Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice, and facilitate the prompt availability of service engineers.
Certifications TUV ISO9001 Certificate CE Certificate Patent Certification software copyright of milling machine Member of High-Tech Nation High-tech Enterprises Member of SZMA Cooperative Partner
Gooda plays an important role in the China machine industry and exports our machine to all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
After-sale service:
24 hours door to door service; 72 hours service by GooDa's international engineer
Packing and shipping
For all exported Milling Machine, we use the PE bag cover inside
+Veneer box / steel beam frame to provide the great protection for it.
FAQ
Q: Are you a manufacturer or Trading Company?
A: We are an innovative enterprise with rich import & export experience and 10 professional production lines. Warmly welcome you to visit our factory.
Q: How is the delivery?
A: For standard configuration, it's usually 45 days after down payment.
Q: Have you sold any machines in my country?
A: With the company development, Gooda plays an important role in the China machine industry and export our machines to all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia, etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: Can you support OEM Service?
A: Yes, according to customers' requirements, we would like to make the building plan to meet customers' needs.
Q.How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself.
.Q: How is the after-sales service?
A: Our products have one year warranty, and a strong team of engineers to support after-sales service. If there is an issue with the machine, please contact us immediately and we will give you a solution way soon. Service first!
