High Temperature PTFE Hose with Steel Wire Braided

High Temperature PTFE Hose with Steel Wire Braided

US$3.00
50-999 Meters
US$2.80
1,000-4,999 Meters
US$2.50
5,000+ Meters

Basic Info.

Model NO.
R14 hose
Kind
Thermoplastics Pipes
Water Absorption
0.12%~0.25%
Contraction Percentage
0.4%~1.4%
Tensile Strength
30~40MPa
Cover
Stainless Steel
Temperature
-60c~260c
Delivery
Within 7 Days
OEM
Accept
Customized
Yes
Match Fitting
Supply
Transport Package
Plastic Bags & Carton Box
Specification
1/4 inch to 1-1/4 inch
Trademark
JJR
Origin
Tianjin
HS Code
3917310000
Production Capacity
50000 Meters Per Half Year

Product Description

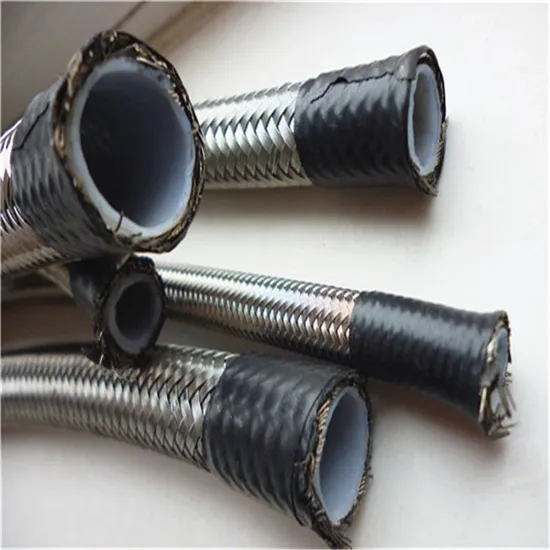

High temperature ptfe hose with steel wire braided
Stainless steel braided Teflon hose Convoluted ptfe hose:
Tube:Temperature chemical resistant PTFE material
Cover:Braided with stainless steel
Temperature range: -60 celsius to 260 celsius.
Stainless steel braided Teflon hose Convoluted ptfe hose:
Hose ID Hose OD Wall thickness Working Pressure Burst Pressure Minimum Bend Radius
inch mm mm mm Mpa Bar Mpa Bar mm
1/4 4.65~5.16 7.32~8.43 0.89 4330 299 13000 897 71
5/16 5.97~6.81 8.26~9.42 0.76 4000 276 12000 828 76
3/8 7.54~8.38 10.36~11.63 0.76 3330 230 10000 690 127
1/2 9.93~10.64 12.78~14.10 0.89 2660 183 8000 552 133
5/8 12.57~13.34 12.75~16.76 0.76 2330 161 7000 483 177
3/4 15.24~16.51 18.62~20.14 0.76 2000 138 6000 414 203
1 21.46~22.99 24.64~26.95 0.89 1500 103 4500 310 241
1-1/4 27.80~29.40 31.90~33.50 1 600 41 2500 172 406

Picture of hose workshop:
Picture of other type hose:
Supply other types hose:
1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5

2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15

3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6

4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8

5.Steam hose
Wire braided steam hose

6.PTFE Hose
SAE 100 R14
