Household 5kg 6kg 8kg Vegetable Small Mini Freeze Dryer Medium 4 Trays Vacuum Freezing Drying for Lab Home USA Instock

Product Description

Product Description

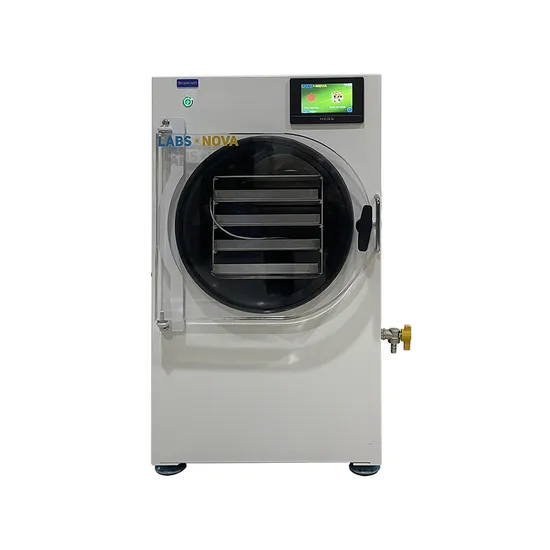

Household-type freeze dryer, also known as home freeze dryer, is a small vacuum
freezedryer.Apply to the family, online shop a small amount of freeze-dried use, widely adapted
to fruits, meat,vegetables, Chinese herbal medicines, health products, etc. freeze-drying.Lyophilization or freeze drying is a process in which water is removed from a product after it is
frozenand placed under a vacuum,allowing the ice to change directly from solid to vapor without
passingthrough a liquid phase. The process consists of three separate,unique, and interdependent
processes;freezing, primary drying (sublimation), and secondary drying (desorption).
Product Parameters

Product Model	WK-HF1	WK-HF4	WK-HF6	WK-HF8	WK-HF10
Freeze-dried Area	0.2	0.55	0.6		1.2
Cold Trap Coil Temperature	<-40ºC (no-load)
Ultimate Vacuum	15pa (no-load)
Power Supply	220V 50HZ or110V 60HZ
Power	1100W	1500W	1800W	2200W	2300W
Handling Capacity	1-2KG / batch	4-6KG / batch	6-8kg / batch	15-20kg / batch	15-20kg / batch
Weight	110KG	150KG	175KG	195KG	200KG
Tray NO.	Three layers	Four layers	Four layers	Eight layers	Ten layers
Dimension	400mm x 550mmx 700mm	600mmx 640mmx 900mm	640mm x 710mm x 1200mm	635mm x 723mm x 1300mm	635mm x 723mm x 1300mm

Integrated structure, small size, easy to use, no leakage

Materials in contact with the product meet food grade requirements

The cold trap is made of stainless steel, which is anti-corrosion and easy to clean

With sample pre-freezing function

The cold trap captures ice evenly; strong ice capture ability

International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.

Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.

Intelligently record and export data

1. Stylish appearance, small size and exquisite;2. Transparent plexiglass door for easy observation of the lyophilization process;3. SUS304 stainless steel material plate and liner, safe and secure;4. Acrylic door with flexbile hinge to ensure vacuum degree5. Import of key components, low noise, high capacity, high quality and high performance;6. Touch screen operation, one-button start, automatic control of freeze-drying process, easy and convenient;7. The freeze-drying process can be set and adjusted in real time, and the freeze-drying data and freeze-drying
curve can be displayed.8. Advanced system, low operating current and low energy consumption;9. One-button fast defrosting technology, over temperature automatic protection.10.Commercial grade vacuum pump with low noise (oilless vacuum pump is optional) Product Display
Application Field
Company Profile
Zhengzhou Labsnova Technology Co., Ltd. founded in 2023,specialized in manufacturing extraction and
distillation equipmentfrom lab scale to production scaleOur main products include Freezer dryer, Rotary evaporator, Glass reactor, Heating&cooling circulator,Water
circulatingvacuum pump,Vacuum drying oven, Low temp cooling liquid circulating pump and so on.So far, our
products have beensold all over Asia, Europe and America. Also,we have covered most of laboratories in China.Well-known has become one of the most popular and trustworthy brand.We are a manufacturer, so we can
also customized products as you need. Because our quality and service, many customer buy second times
from us. Most of our standard products are in stock and ready to ship.
Related product
FAQ
1. The period, scope and condition of the warranty.(1)We offer 1 years warranty on the date of shipping from China. During the warranty
time, because of manufacturing&qualityproblem, we offer replacement, maintenance service.(2)The damage caused by the transportation problem shall be borne by the seller.2. How to solve the problem of your equipment?Please send us email of the problem, pictures or a small video will be much better.
we will find the problem and tell you how to solve it. If there is a broken, we will send
you a new part, and it is free in the warranty period.3.How to shipping the replacement parts?We will according the actual situation to choose the suitable shipping ways. For small
parts we shippin by Express.4. Could you do customized for us?We are a manufacturer that can provide all kinds of customized services.
