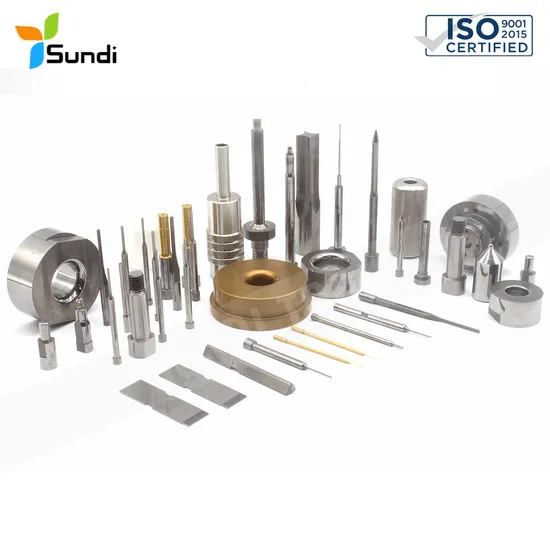

Sundi Custom Mold Made Metal Tool Steel HSS SKD11 Stamping Punch Die Component Carbide Punch

Product Description

Product Description
Material Selection of Mold Accessories /Wear Resistance

Material	Characteristics	Hardness Range	Parts Tolerance
High-Speed Steel(M2,1.3343,EM2,SKH51)	Excellent wear resistance, high toughness, suitable for high-speed operation	58-64 HRC	±0.002mm
Tungsten Carbide ( brands from EVERLOY,FYJILLOY,CERATIZIT,KENNA)	Extremely high hardness, superior wear resistance, but more brittle than HSS	85-94 HRA	±0.002mm
Tool Steel (A2, D2, DC53)	Good balance of wear resistance and toughness, widely used in stamping tools	A2: 58-62 HRC, D2: 55-62 HRC, DC5356-59HRC	±0.002mm
Powdered Metals (ASP23, ASP30)	High uniformity, excellent material properties, suitable for complex shapes	ASP23: 60-65 HRC, ASP30: 63-67 HRC	±0.002mm
High Carbon High Chromium Steel (D3, D6)	High Carbon High Chromium Steel (D3, D6)	D3: 62-64 HRC, D6: 58-62 HRC	±0.002mm
Aluminum Alloy	Lightweight, strong, corrosion-resistant, good thermal conductivity, non-magnetic, easy to machine, durable, recyclable, high strength-to-weight ratio.	15 to 40 HRC	±0.01mm
Industry Ceramic	Alumina ceramics(Al2O3),Zirconia Ceramics (ZrO2),Silicon Nitride (Si3N4),Magnesium Oxide (MgO)	n/a	±0.005mm

Main Precision Manufacturing Devices to Guarantee the Quality

Manufacturing Devices	Brands	Machining Tolerance
Surface Grinding (SG)	OKAMOTO/Changhan	+/-0.001mm
Optical Profile Grinding (OPG)	AMADA	+/-0.002mm
Cylindrical Grinding (CG)		+/-0.002mm
Oil /Water Wire EDM	Seibu /Sodick	+/-0.002mm
Sinker EDM	Seibu /Sodick	+/-0.002mm
CNC Machine Center (3,4,5 Axis )	Beijing Jingdiao /HAAS	+/-0.005mm

Company Profile
Our Advantages

Certifications

Packaging & Shipping
FAQ
CAN YOU MAKE THE CUSTOMIZED PARTS?
Of course, we also take the design for clients and make the special parts and mold, satisfied with customers of high quality.
HOW ABOUT THE LEAD TIME?
The lead time is based on the quantity and complexity of the ordering tools. it's normal for 10-20 days, If urgent,
we'll arrange the production with top priority to reduce lead time.
DO YOU KEEP A STOCK OF YOUR PRODUCTS?
We will stock for the regular ordering parts, for the customized product we need to machine them according
to special requirements.
CAN YOUR ENGINEER JOIN OUR PROGRAM DESIGN
We're very pleased to be working with you, we can offer our idea and design.
IS THERE A PRICE LIST?
Feel free to contact our sales to get the last price list and offer.
