Good Quality Crusher Spare Parts Suitable for Jaw Crusher and Cone Crusher/OEM HP500 1048314236

Product Description

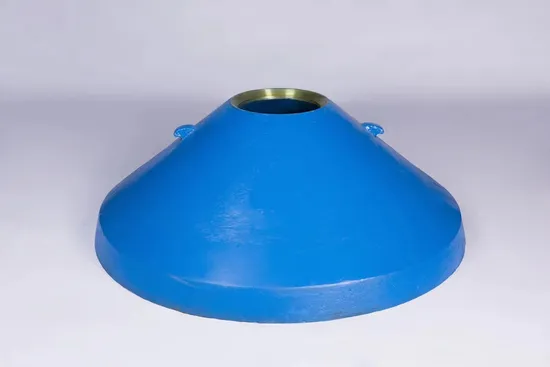

Good Quality Cone Crusher Spare Parts
Good Quality Jaw Crusher Spare Parts
Applications:
Wear spare parts for crushers. Designed to protect crushers and improve their working life.
Advantages:
1. Accurate dimensions, assure validity and suitability as per original parts number and drawing
2. Make your crusher experience less downtime
3. More economical, save your cost 40-60%
4. Stronger wear resistance reduce maintenance costs
5. Advanced manufacturing technology, produce strictly according to original process flow & original drawings.
Machining capacity:

Casting Material :
Following is our normal material component, we also can customize products as your request.High Manganese Casting Material Chemical composition
Available material: Mn13Cr2, Mn18Cr2, Mn22Cr2, high chromium, high chromium with ceramic, martensitic, martensitic with ceramic, or customized composition.

Material Code	C	Mn	Si	Cr	P	S	Mo	Ni	Hardness
ZGMn13Cr2	1.05-1.25	12-14	≤0.8	1.5-2.5	≤0.06	≤0.04
ZGMn18Cr2	1.1-1.5	17-19	≤0.8	1.5-2.5	≤0.06	≤0.04
ZGMn22Cr2	1.1-1.5	21-23	≤0.8	1.5-2.5	≤0.06	≤0.04
High chromium	3-3.5	0.5-0.9	0.4-0.8	25-27	≤0.06	≤0.04	0.3-0.5	0.3-0.5	HRC>60

Models we supply : The crusher spare parts we mainly provide can suit the brand model under below.

Models suit for cone crusher
CH/CS series	CH420 CH430 CH440 CH660 CH860 CH865 CH870 CH890 CH895 CS420 CS430 CS440 CS660
HP series	HP100 HP200 HP300 HP400 HP500 HP800
GP series	GP11 GP100 GP200 GP300 GP500 GP220 GP330 GP550 GP100S GP200S GP300S GP500S
MP series	MP800 MP1000 MP1250 MP2500
Models suit for jaw crusher
C series	C63 C80 C95 C96 C105 C106 C100 C110 C120 C125 C140 C145 C150 C160 C200
Models suit for impact crusher
NP series	NP1213 NP1315 NP1520 NP1620 NP2023
Models suit for gyratory crusher
S series	S4265 S5065 S5475 S6089 S6275 S60110

Company Profile :
Our company, Zhengzhou Mete Mining Machinery Co., Ltd.(ZH) is one of the leading wearing spare parts supplier in China. We provide a wide range of standard crusher spare parts for Cone Crusher, Jaw Crusher, HSI and VSI crushers from world famous brands and also supply some customized castings according to the customer's drawings and material composition.
We start from the raw materials of the product to control every production process. Each step of production process is complied with ISO9001-2008 requirement. Our quality control system includes Chemical analysis, Dimension measurement, Heat-treatment record, Metallographic inspection, Hardness test and other necessary steps.
With more than 20 years of production experience and annual production capacity of 15,000 tons, our products are widely used in quarrying, mining and recycling industry at home and abroad.
With advanced technology and sincere attitude, we insists on providing high-quality products and services for our customers, together we build a better future
FAQ :

1. Q: What kinds of products do you offer?
A: We are mainly on parts for jaw crushers and cone crushers and also impact crusher and hammer crusher spare parts.

2. Q: What kind of materials are using for the products?
A: We supply wear parts with various manganese content and for jaw crushers and cone crushers mostly the 13% and 18% manganese steel.

3. Q: What's the maximum single weight that can be casted, What is your processing capacity per day ?
A: The single weight that can be casted at one time is 10 tons. The capacity is 35 tons per working day.

4. Q: What information do we need to provide to you in order to confirm our parts order?
A: For standard parts, just provide us the drawing No. so we could confirm the exact parts.
For non-standard products, provide us your drawings or detailed specifications for our technical staff could make the drawing.

6. Q: May we visit the factory?
A: Yes, you can visit the factory during working days and our sales team would be happy to assist you.
It is possible, to take the high speed train from Shanghai station to the factory and we would pick you up at train station or airplane station in Shanghai.

7. Q: If your product has inferior quality or quality problem after we use them what happens next?
A: First, you have to provide us photos of the problem part and also provide photos of the machine so we can see how the part was installed and gather other necessary information to define the cause of the problem.
If it is indeed a quality problem of the product itself, we would offer compensation to you and also figure out solutions to avoid this kind of quality problem in the future. If the problem is caused by clients, we would provide the technical suggestions to avoid same problems.
8. Q: Why you have to choose us from multiple vendors?
As a manufacture for high manganese parts since 1998, we have strict quality control and quick delivery, we know quality is what matters the most and we give customers the quick response and the most competitive price. Contact us for more information on our existed drawings, patterns and prices.
